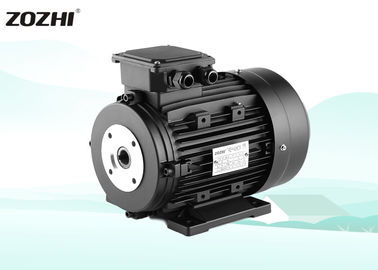

1 Phase 24mm Hollow Shaft Electric Motor 3hp 2.2 KW 230 Volt 50Hz IE1 B3 1400rpm

  • 1 Phase 24mm Hollow Shaft Electric Motor 3hp 2.2 KW 230 Volt 50Hz IE1 B3 1400rpm
  • 1 Phase 24mm Hollow Shaft Electric Motor 3hp 2.2 KW 230 Volt 50Hz IE1 B3 1400rpm
  • 1 Phase 24mm Hollow Shaft Electric Motor 3hp 2.2 KW 230 Volt 50Hz IE1 B3 1400rpm
  • 1 Phase 24mm Hollow Shaft Electric Motor 3hp 2.2 KW 230 Volt 50Hz IE1 B3 1400rpm
  • 1 Phase 24mm Hollow Shaft Electric Motor 3hp 2.2 KW 230 Volt 50Hz IE1 B3 1400rpm
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 100L2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Voltage 230V
Phase Single Phase Output 3hp/2.2kw
Speed 1400rpm Shaft 24mm
Frame 100 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3 B5 B14 B34 B35
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

IE1 Hollow Shaft Electric Motor
Leave a Message
Product Description

1 Phase Motors 24mm Hollow Shaft 3hp / 2.2 kW 230 Volt 50Hz IE1 B3 1400rpm

Hollow Shaft Motor



230 - Volts

Single Phase 50 Hz

3 hp / 2.2kw

Speed - 1400 rpm

Shaft - 24mm Female HOLLOW

Frame - 100L

Die-cast aluminum housing

Foot Mount - B3

Rated to IP55

IE1 rated

Weight - 23 kg



Motors of this series are integrated with up-to-date design, built with the best quality materials and attractive appearance.



They have outstanding performance, easy maintenance, and are reliable. Moreover,  completely conform to international I.E.C. standards.



1. C.E. certificate
2. Copper wire
3. Cold-rolled silicon steel sheet



50Hz Electric Motor - B3 - Hollow shaft - Single Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F. U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22

1 Phase 24mm Hollow Shaft Electric Motor 3hp 2.2 KW 230 Volt 50Hz IE1 B3 1400rpm 0
FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
90 90mm 90L RC
100 90mm 100L RC - RR - RS - XT NHD - NHDP
112 61/90mm 112M XM - RK - RS-RC - RR



1 Phase 24mm Hollow Shaft Electric Motor 3hp 2.2 KW 230 Volt 50Hz IE1 B3 1400rpm 1
