IP55 Hollow Shaft Motor, Single / Three Phase Asynchronous Motors HS Series

  • IP55 Hollow Shaft Motor, Single / Three Phase Asynchronous Motors HS Series
  • IP55 Hollow Shaft Motor, Single / Three Phase Asynchronous Motors HS Series
  • IP55 Hollow Shaft Motor, Single / Three Phase Asynchronous Motors HS Series
  • IP55 Hollow Shaft Motor, Single / Three Phase Asynchronous Motors HS Series
  • IP55 Hollow Shaft Motor, Single / Three Phase Asynchronous Motors HS Series
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Hollow shaft motor Hs Series
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month
Product Details
Product Name Hollow Shaft Motor Voltage 230V 230/400V
Phase Single/Three Output 0.25kw-18.5kw
Speed 1400rpm Shaft 24mm
Frame 71 、90、100、112、132、160 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3 B5 B14 B34 B35
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
Highlight

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

IP55 hollow shaft Asynchronous Motor
Leave a Message
Product Description

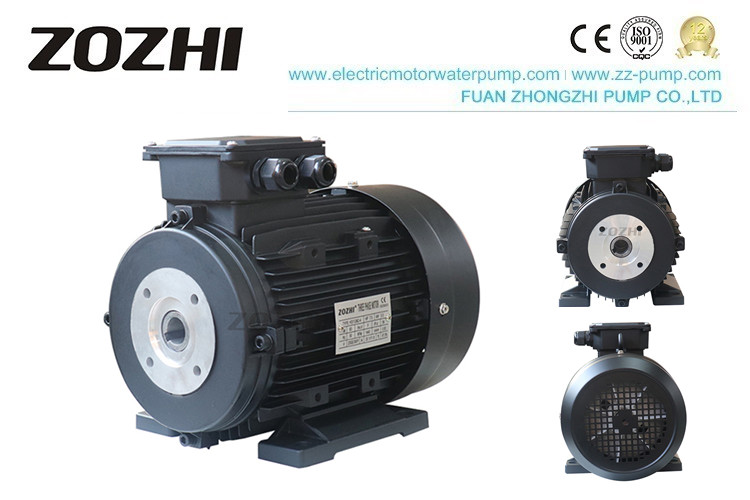

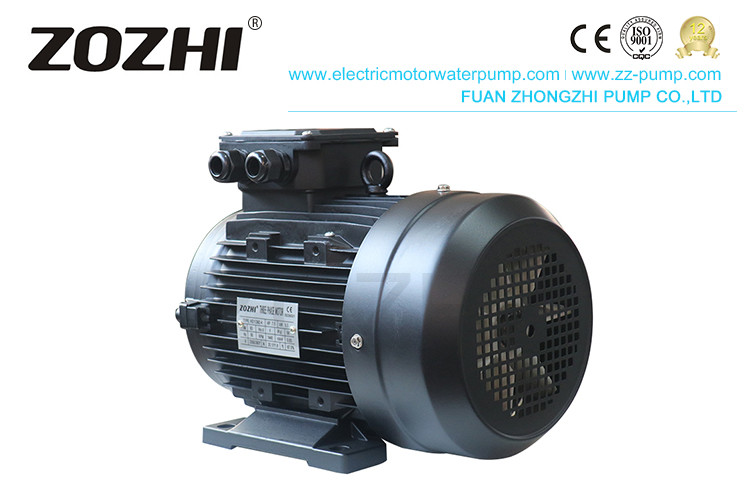

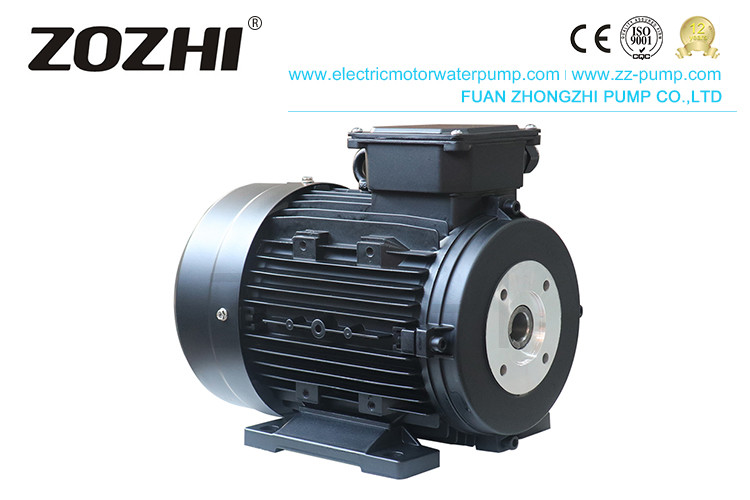

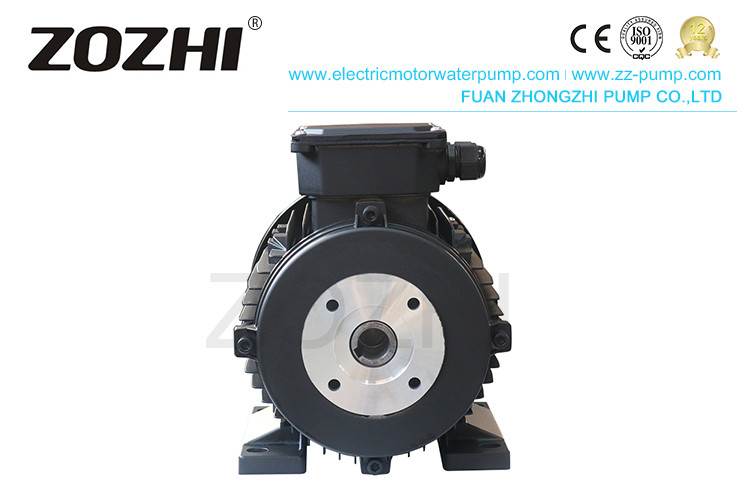

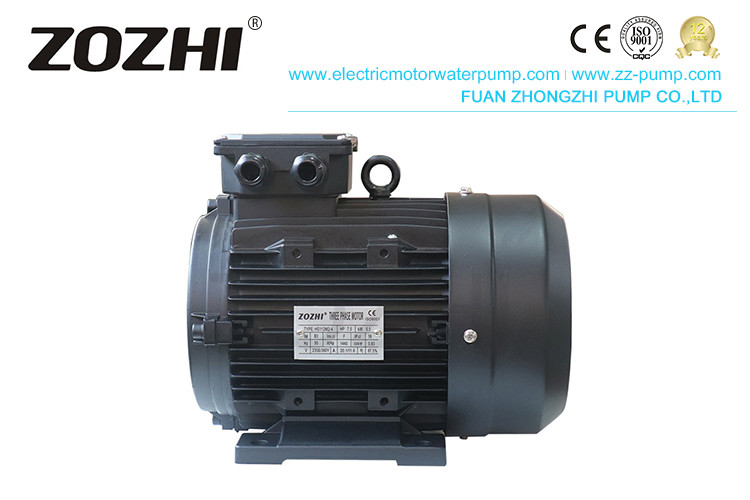

IP55 Hollow Shaft Motor, Single / Three Phase Asynchronous Motors HS Series



Hollow Shaft Motor

This type of electric motor is our company's flagship, which has over many years of experience in this particular market segment.



The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and, at the same time, provides a reliable and cost-efficient solution.



We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.



50Hz Electric Motor - B3 - Hollow shaft - Single Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F. U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22

IP55 Hollow Shaft Motor, Single / Three Phase Asynchronous Motors HS Series 0
FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
90 90mm 90L R.C.
100 90mm 100L RC - RR - RS - XT NHD - NHDP
112 61/90mm 112M XM - RK - RS-RC - RR







50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

IP55 Hollow Shaft Motor, Single / Three Phase Asynchronous Motors HS Series 1


FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - R.G.
90 61/90mm 90L X.M. - R.K. - RG
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44 49 50 51 58 60 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP
