4 Pole Three Phase Electric Motor 1450rpm Speed 5.5kw/7.5hp With ISO Approval

  • 4 Pole Three Phase Electric Motor 1450rpm Speed 5.5kw/7.5hp With ISO Approval
  • 4 Pole Three Phase Electric Motor 1450rpm Speed 5.5kw/7.5hp With ISO Approval
  • 4 Pole Three Phase Electric Motor 1450rpm Speed 5.5kw/7.5hp With ISO Approval
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 112M2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Electric High Pressure Cleaner
Output 5.5kw/7.5hp Pole 4
Phase Three Phase Speed 1450rpm
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

ISO Approval hollow shaft motor
Leave a Message
Product Description

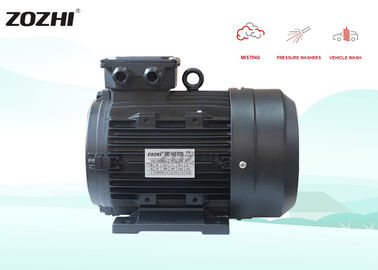

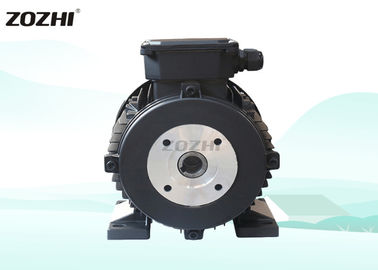

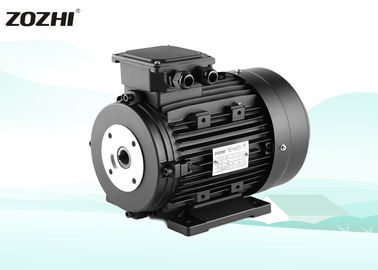

4 Pole Three Phase Electric Motor 1450rpm Speed 5.5kw/7.5hp With ISO Approval

Hollow Shaft Motor



Standard electric motors manufactured in the most typical forms of construction, equipped with a hollow shaft for water pumps, are used in pressure water cleaners.



The hollow shaft has a difference located on the specific kind of shaft mounted on it, suitable for any water pressure pump.







Application



Cold water pressure washers can generate pressure up to 500bar; even stubborn dirt can be removed.

hollow shaft motor



Data



Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Production line

hollow shaft motor





IT ALSO NEEDS OTHER EQUIPMENT
High-pressure pipe, 10 m
Spray gun, industrial trigger
Stainless steel boom, 700 mm
Flat spray nozzle
Security gate
Working hours counter
