Horizontal Three Phase Hollow Shaft Electric Motor High Pressure 1400rpm Speed

China Horizontal Three Phase Hollow Shaft Electric Motor High Pressure 1400rpm Speed supplier

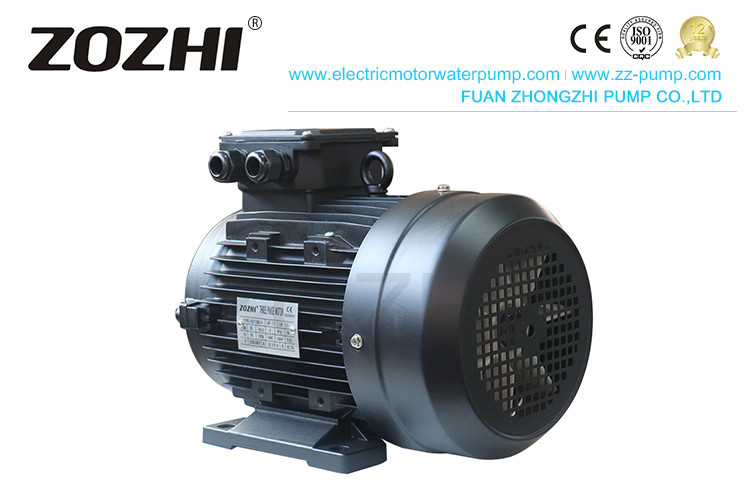

Large Image :  Horizontal Three Phase Hollow Shaft Electric Motor High Pressure 1400rpm Speed

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: 132S2-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Hollow Shaft Motor Application: Pressure Washers
Output: 7.5KW/10HP Pole: 4
Phase: Three Phase Speed: 1400rpm

Horizontal Three-Phase Hollow Shaft Electric Motor With High-Pressure Motor



MOTOR CONTRUCTION SHAPE WEIGH RATED POWER OUTPUT SPPD VOLTAGE FOR PUMP SERIES
KG HP KW RPM
HS132S2-4 32.0 10 7.5 1400 230/400V NMT, NPM, NMT Car Wash, NMT Nickel-Plated, NPM Nickel-Plated, NMT Stainless Steel, PXI 350 bar, NLTI, PXI 500 bar, NMT-Special Brass



● For pressure washers pumps
● Hollow-shaft coupling for direct mounting to the pump, in just a few minutes
● No need to disassemble the motor front side
● Special executions on request
Motors for high-pressure pumps with hollow shafts and single bearings are designed for direct coupling.



hollow shaft motor



Data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34





hollow shaft motor



What is routine maintenance:



1. Do regular inspections and maintenance care During the annual overhaul, the motor is disassembled and maintained. Bearing cleaning, refueling or replacement, insulation inspection, and improvement of the cooling system, etc., ensure that the motor runs in an intact state;

2. Strengthen comprehensive management during operation. During the use of the motor, the responsibility system is strictly implemented. The maintenance person makes regular inspections every shift, observes and monitors the motor, and handles problems in a timely manner to ensure the quality of maintenance.

3. When repairing the motor, it is necessary to ensure that various parameters meet the technical requirements of the motor, strictly control the quality of the replacement parts and enameled wire, correctly operate the various procedures, prevent artificial accidents and improve the quality of the motor after repair;

4. ensure control The system is running perfectly. Every electrical component in the second line that controls the motor should be regularly checked and maintained to ensure its integrity, and the overcurrent short-circuit protection device should be regularly checked to ensure that the action is reliable and sensitive, so that the motor is always in a good operating state.
