3Kw Single Phase Induction Motor 1400rpm For Misting System NHD120 Bar Pump

  • 3Kw Single Phase Induction Motor 1400rpm For Misting System NHD120 Bar Pump
  • 3Kw Single Phase Induction Motor 1400rpm For Misting System NHD120 Bar Pump
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 112M1-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Misting System /Pressure Washers /Vehicle Wahser
Output 3kw/4hp Phase Single PHASE
Speed 1400rpm
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

1400rpm misting system induction motor
Leave a Message
Product Description

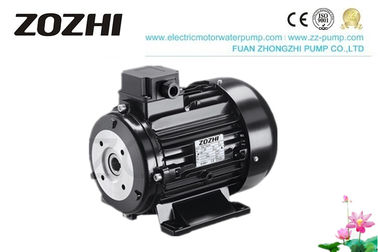

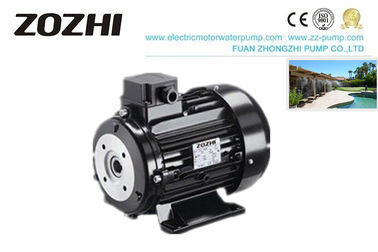

3Kw Single Phase Induction Motor 1400rpm For Misting System NHD120 Bar Pump

Hollow Shaft Motor



Operating conditions:



Output 3kw/4HP Model HS112M1-4
Duty S1 Speed 1400RPM
Ambient temperature -15℃≤θ≤60℃ Rated voltage 230V
Frequency 50HZ Protection class IP55/54
Phase Single Pole 4
Insulation Class F Efficiency IE3/IE2





hollow shaft electric motor





For Misting System




Hollow-shaft coupling for direct mounting to the NHD 120 bar pump, in just a few minutes





This model is a perfect choice for fitting on professional high-pressure washers powered by an NHD 120bar pump or for misting systems.



hollow shaft motor



Data



Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22





What is high-pressure spray dust reduction equipment?

A high-pressure spray dust reduction system is a new dust reduction system. The principle is to use a high-pressure pump to pressurize water to 50-70 kg and send it to a high-pressure nozzle for atomization through a high-pressure pipeline to form a flying water mist. Since the water mist particles are micron-sized, they are tiny. Therefore, they can be absorbed into the air Impurities, create sound and fresh air, and achieve multiple effects such as dust reduction and humidification.



This system has a dust-reducing effect for textiles, ceramics, and other workshops and can also be used in squares, pedestrian streets, and other places. The potion is more versatile for spraying, disinfecting, and cleaning. Do more with one hand and use it economically. With low system cost, quiet operation and maintenance, and economical and practical, the control system can realize unmanned automatic control.
