Clean Machine Hollow Shaft Hydraulic Motor 1.5KW/2HP Single Phase For Pressure Washer

  • Clean Machine Hollow Shaft Hydraulic Motor 1.5KW/2HP Single Phase For Pressure Washer
  • Clean Machine Hollow Shaft Hydraulic Motor 1.5KW/2HP Single Phase For Pressure Washer
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 90L1-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Cleaning Machine / Pressure Washer
Output 1.5kw/2hp Pole 4
Phase Single Phase Speed 1400rpm
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

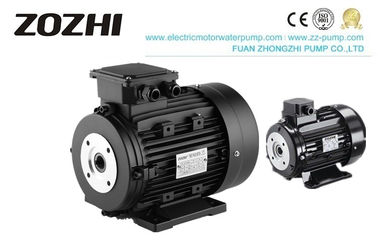

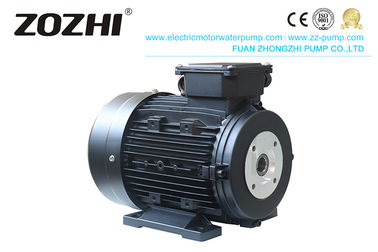

Clean Machine Hollow Shaft Hydraulic Motor 1.5KW/2HP Single Phase For Pressure Washer

Hollow Shaft Motor

Single-phase hollow shaft motors are mainly used in household cleaning equipment.



Shaft Size:24mm hollow
Horsepower:1.5kw/2HP
Rpm:1400
Voltage:220V
Phase:1
Hertz:50





hollow shaft electric motor





Data



Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22



hollow shaft electric motor



Routine maintenance:



1. Do regular inspection and maintenance care. During the annual overhaul, the motor is disassembled and maintained. Bearing cleaning, refueling or replacement, insulation inspection, and improvement of the cooling system, etc., ensure that the motor runs in an intact state;



2. Strengthen comprehensive management during operation. During the use of the motor, the responsibility system is strictly implemented. The maintenance person makes regular inspections every shift, observes and monitors the motor, and handles problems on time to ensure the quality of maintenance.



3. When repairing the motor, it is necessary to ensure that various parameters meet the technical requirements of the motor, strictly control the quality of the replacement parts and enameled wire, correctly operate the multiple procedures, prevent artificial accidents and improve the quality of the motor after repair;



4. ensure control The system is running perfectly. Every electrical component in the second line that contains the motor should be regularly checked and maintained to ensure its integrity. In addition, the overcurrent short-circuit protection device should be checked periodically to ensure that the action is reliable and sensitive so that the motor is always in a good operating state.


Suitable for the following applications :



pressure washers

industrial cleaning

misting system

vehicle car cleaning

food hot temperature cleaning

municipality cleaning service
