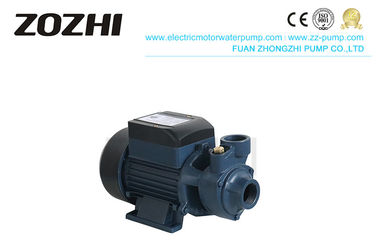

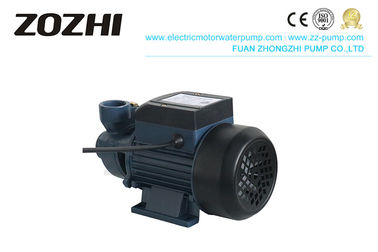

QB60 Electric Motor Driven Water Pump 0.37KW IP 44 220V/50HZ With Brass Impeller

Place of Origin Fuan, Fujian
Brand Name ZOZHI
Certification CE
Model Number QB-60
Minimum Order Quantity 1CBM
Price negotiated
Packaging Details Box+Pallet
Delivery Time 30 working days after received your payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 30000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure Single-stage Pump Product Name Electric Motor Water Pump
Front Cover Cast Iron/Aluminum With Brass Insert Mechanical Seal Carbon/Ceramic/Stainless Steel
Shaft Carbon Steel Protection IP 44
Power Electric Pump Body Cast Iron/Stainless Steel/Brass
Impeller Single Impeller Motor Housing Alloy Aluminium
Insulation Class B/Class F
High Light

electronic water pump

,

commercial electric water pump

Leave a Message
Product Description

QB60 Electric Motor Driven Water Pump 0.37KW IP 44 220V/50HZ With Brass Impeller



Electric Motor Water Pump Description:

This unit has a robust steel pump and motor body to last you for years of service. This compact unit is suitable for indoor/weather-protected use for general household supply, water transfer, and pressure boosting (not suited for dirty water such as ponds, lakes, rivers, etc. Able to pump 35 liters per minute, this pump is designed for pumping clean tank water.
Some 1000 watt power-draining monsters not only pump up plenty of water, but they also pump up your electricity bill!!!!
This pump is much cheaper to run at just a 370 watts power drain and will still pump plenty of tank water for your garden irrigation needs.



Electric Motor Water Pump Advantages:

1. High-quality Capacitor: Adopt a good capacitor made by an advanced production line, heat resistant to 85 ℃, the working lift is more than 10000 hours.

2. Cold rolled stator: Good quality cold-rolled silicon from the Wugang brand made by a high-speed punching machine, less burr, high concentricity, and stability.



3. Coil with 100% copper wire: 100% copper wire, with thermal protector, make the pump stop working automatically at the condition of jam or
overload, etc.

4. No leakage of winding: 100% coil testing to make sure each coil is energized, and no leakage at high voltage condition





QB60 Electric Motor Driven Water Pump 0.37KW IP 44 220V/50HZ With Brass Impeller 0



TECHNICAL DATA (220~240V/50HZ)



Model Single-phase Motor n=2850r/min
Input max Output Power Current Q.max H.max Suct. max
kW kW HP A L/min m m
QB-60 0.55 0.37 0.5 2.5 35 35 9
QB-70 0.8 0.55 0.75 3.8 45 50
QB-80 1.1 0.75 1.0 5.2 50 55
QB-90 1.5 1.1 1.5 7 90 60

QB60 Electric Motor Driven Water Pump 0.37KW IP 44 220V/50HZ With Brass Impeller 1

QB60 Electric Motor Driven Water Pump 0.37KW IP 44 220V/50HZ With Brass Impeller 2

QB60 Electric Motor Driven Water Pump 0.37KW IP 44 220V/50HZ With Brass Impeller 3

Our Customer

QB60 Electric Motor Driven Water Pump 0.37KW IP 44 220V/50HZ With Brass Impeller 4

Electric Motor Water Pump Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our Service:
1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things, or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3.we test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to request
4.we can be your OEM manufacturer with your authorization of the brand.



FAQ:
Q: What’s the MOQ?
A: We accept one piece.

Q: Are you a factory or trading company?
A: We are a manufacturer.

Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

Q: What’s the warranty period?
A: 1 year.

Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
