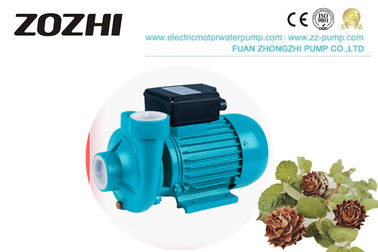

|Item Name:||Centrifugal Water Pump||Power:||0.55KW/0.75HP|
|Flow Max:||180 L/min||Head Max:||16m|
|S. HEAD:||9M||Pipe Size:||1.5"x1.5"|
These pumps are suitable for cleaning water without abrasive particles and liquids
Cost-effective and reliable for home use
Particularly suitable for water distribution in gardens in combination with small pressure setting devices
The pump must be installed in a covered area to prevent bad weather.
Potable water or other clean, thin or non-aggressive liquids
The PH value of the medium is between 6.5-8.5;
The volume ratio of solid impurities in water does not exceed 0.1%, and the particle size is not greater than 0.2mm;
The power frequency is 50Hz, the voltage is single-phase 220V / three-phase 380V, and the voltage fluctuation range is 0.9-1.1 times the rated value;
The air in the pump must be drained before use, otherwise, the pumping cannot be performed normally
|HP / KW||1~220V||(l/min)||(m)||(M)||(mm)||(Kg)|
|1.5DKM-16||0.75 / 0.55||4||2850||180||16||9||1.5"x1.5"||320x180x210||9.9|
|1.5DKM-20||1 / 0.75||4.8||2850||240||20||9||1.5"x1.5"||320x180x210||12|
|2DKM-16||1.5 / 1.1||6.2||2850||480||21||9||2"x2"||380x235x250||23|
|2DKM-20||2.0 / 1.5||9.4||2850||540||23||9||2"x2"||380x235x250||25|
|Transmission medium||Clean Water, sewage water and fluids|
|Pump body||Cast Iron|
|Impeller||Brass with centrifugal radial flow|
|Stator&Rotor||1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire|
|Front cover||Cast Iron|
|Bearing||Chinese Best Quality Bearing||NSK, SKF or on request|
|Mechanical seal||Graphene/Ceramic||Silicon Carbon|
|Shaft||Carbon Steel||Stainless Steel|
|Insulation||Class B||Class F|
|Voltage||220-240V Single Phase||On Request|
|Automatic Pressure Control System||No||Yes|
|Cooling Type||External Ventilation|
|Max. Suction lift||9M|
|Max. Fluid Temperature||+60℃|
|Max. Environment Temperature||+40℃|
|CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC|
