5.5KW Cleaning Machine Hollow Shaft Motor IP54 IP55 Clockwise Rotation Direction

China 5.5KW Cleaning Machine Hollow Shaft Motor IP54 IP55 Clockwise Rotation Direction supplier
5.5KW Cleaning Machine Hollow Shaft Motor IP54 IP55 Clockwise Rotation Direction supplier 5.5KW Cleaning Machine Hollow Shaft Motor IP54 IP55 Clockwise Rotation Direction supplier

Large Image :  5.5KW Cleaning Machine Hollow Shaft Motor IP54 IP55 Clockwise Rotation Direction

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: 112M2-4

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: 5.5KW Pole: 4
Rotation Direction: Clockwise Motor Bearing:: C&U (SKF For Choice)
Efficiency:: IE1,IE2,IE3 Motor Housing:: Aluminum
Protection Class:: IP54/IP55 Insulation Class:: F Class

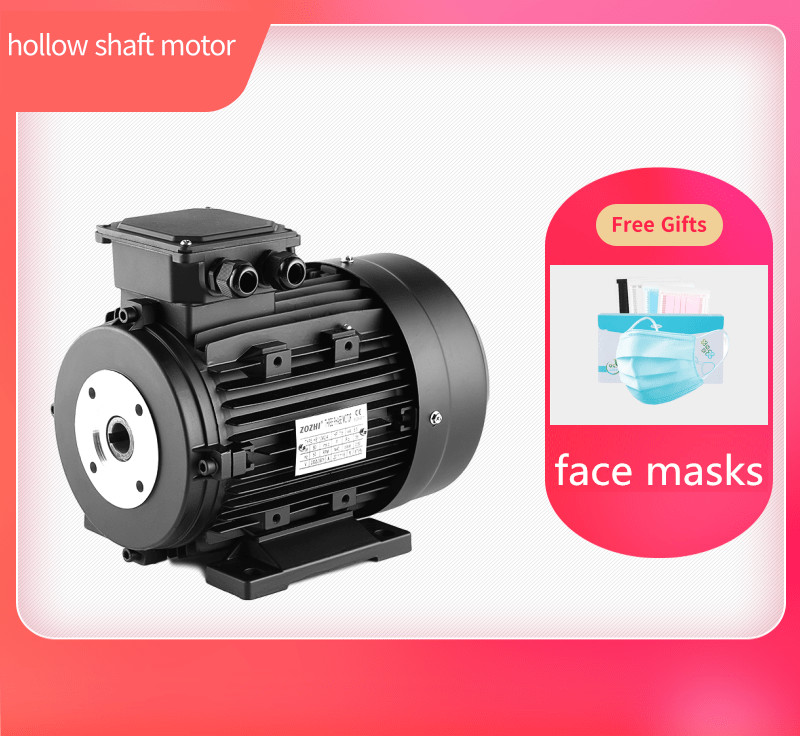

5.5KW Cleaning Machine Motor Hollow Shaft Motor With Free Gifts Face Masks

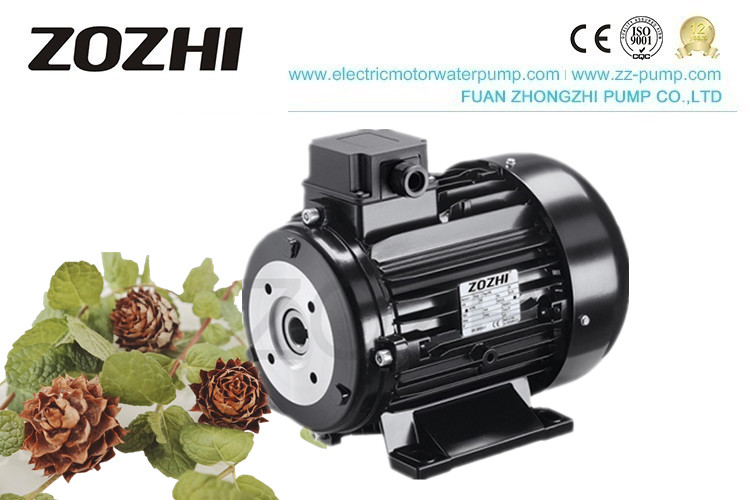

Three-phase asynchronous aluminum housing motor with HOLLOW SHAFT.



The 5.5kw hollow shaft electric motor direct-connected to position pump



The motor application to cleaning machine








Application



hollow shaft motor



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34





Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
