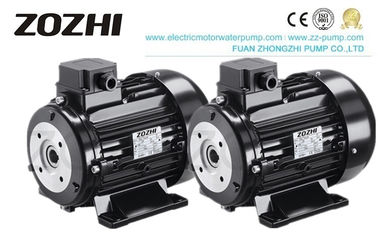

1450RPM Three Phase Induction Motor 11KW 15HP For Fire Fighting Piston Pumps

1450RPM Three Phase Induction Motor 11KW 15HP For Fire Fighting Piston Pumps
1450RPM Three Phase Induction Motor 11KW 15HP For Fire Fighting Piston Pumps

Large Image :  1450RPM Three Phase Induction Motor 11KW 15HP For Fire Fighting Piston Pumps

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: 132M2-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Hollow Shaft Motor Application: Pressure Washers /Vehicle Wahser/Fire Fighting
Output: 11kw/15hp Pole: 4
Phase: Three Phase Speed: 1450rpm
High Light:

hollow shaft electric motor

,

hollow shaft hydraulic motor

11KW/15HP Three Phase Hollow Shaft Motor 1450RPM For Fire Fighting Piston Pumps





Operating conditions:

Output 11kw/15HP Model HS132M2-4
Duty S1 Speed 1450RPM
Ambient temperature -15℃≤θ≤60℃ Rated voltage 230/400V
Frequency 60HZ Protection class IP55/54
Phase 3 Pole 4
Insulation Class F Efficiency IE3/IE2





hollow shaft electric motor





For pressure washers pumps
No need to disassemble the motor front side

Hollow-shaft coupling for direct mounting to the pump, in just a few minutes



hollow shaft motor direct-connected with XLTI pump has two types:



The first type can operate at a maximum pressure of 300 bar and with water temperatures up to 65°C (149F). This category is particularly suited for fitting on professional high-pressure washers or on small goods vehicles that have to do very challenging cleaning jobs, exploiting its superior performance in terms of pressure.



The second type can operate at a maximum pressure of 170 bar, with flow rates up to 54pm, and water temperatures up to 65°C (149F). This category offers superior performance in terms of flow rate and is suitable for fitting on automatic gantry-style car washes, on small goods vehicles for municipal cleaning services, or misting systems or fire extinguishing systems.



hollow shaft motor



Data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

hollow shaft motor








1450RPM Three Phase Induction Motor 11KW 15HP For Fire Fighting Piston Pumps 3



GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
