Product Details:
Payment & Shipping Terms:
|
Product Name: | Hollow Shaft Motor | Application: | Pressure Washers /Vehicle Wahser |
---|---|---|---|
Output: | 3kw/4HP | Pole: | 4 |
Phase: | Three Phase | Speed: | 1400rpm |
High Light: | hollow shaft electric motor,hollow shaft hydraulic motor |

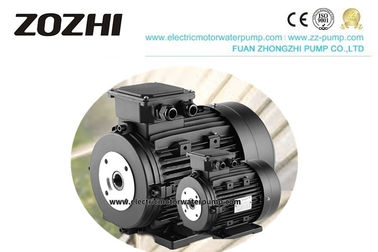

Three-phase HS100L2-4 3KW 4HP 1400RPM aluminum housing hollow shaft motor,100% wire copper, NSK bearing.
Empty metal tube design, direct mounting to the pump, in just a few minutes.
Beautiful appearance, easy operation, low noise, small vibration, lightweight, simple structure
Operating conditions:
Output | 3kw/4HP | Model | HS100L2-4 |
Duty | S1 | Speed | 1400RPM |
Ambient temperature | -15℃≤θ≤60℃ | Rated voltage | 380V |
Frequency | 60HZ | Protection class | IP55/54 |
Phase | 3 | Pole | 4 |
Insulation Class | F | Efficiency | IE3/IE2 |
Application
3kw 4hp 1400RPM three-phase hollow shaft motor can direct-connected with 200bar plug pumps
t is a particularly good choice for fitting on compact professional high-pressure washers as well as washing systems for motor vehicles on account of the excellent duration of its seals
Data
Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | HP | P.F. | V | A | |||
711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:
FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
