2.2KW 3HP Hollow Shaft Electric Motor HS100L2-4 For High Pressure Power Washers
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washers |
|---|---|---|---|
| Output | 2.2kw/3HP | Pole | 4 |
| Flange Size | 100 | Speed | 1400rpm |
| Insulation | Class B | Rotation Direction | Clockwise |
| Highlight | hollow shaft electric motor,hollow shaft hydraulic motor |
||
Product Description
2.2KW 3HP Hollow Shaft Electric Motor HS100L2-4 For High-Pressure Power Washers

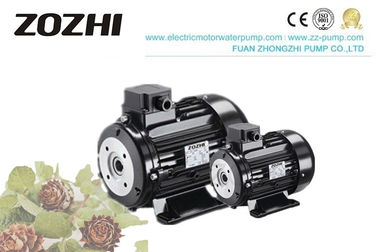

HS100L2-4 2.2KW 3HP aluminum housing electric motor with hollow shaft
Hollow-shaft coupling for direct mounting to the pump, in just a few minutes
Motors for high-pressure pumps with hollow shafts and single bearings are designed for direct coupling.
Hollow Shaft Motor
Operating conditions:
| Output | 2.2kw/3HP | Model | HS100L2-4 |
| Duty | S1 | Speed | 1400RPM |
| Ambient temperature | -15℃≤θ≤60℃ | Rated voltage | 230V |
| Frequency | 50HZ | Protection class | IP55/54 |
| Phase | 1 | Pole | 4 |
| Insulation Class | F | Efficiency | IE3/IE2 |
Application
hollow shaft motor for 150bar high-pressure pumps can operate at a maximum pressure of 150 bar and with water temperatures up to 65°C (150F). This model choice for high-pressure washers
Data
| Single-Phase 4 Poles 1400Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P. | P.F. | U.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
| 712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
| 100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
| 100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
| 100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
| 112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
| 112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
|
|
|
|
|
|
|
|
|
Hollow Shaft Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
