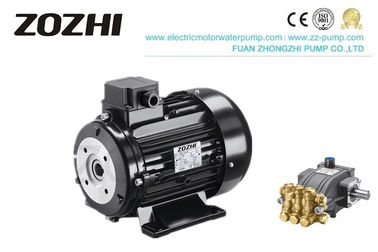

Aluminum Single Phase hollow shaft Motor 230V 3HP 1400RPM For Electric Pressure Washer

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 100L2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Pressure Washers
Output 2.2kw/3HP Pole 4
Flange Size 100 Speed 1400rpm
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

Leave a Message
Product Description



Aluminum Single Phase hollow shaft Motor 230V 3HP 1400RPM For Electric Pressure Washer

Single-phase aluminum shell hollow shaft motor is directly combined with plug pump, using high-pressure water to remove rust, dust, dirt, and other dirt from the vehicle
Low power consumption
high performance
Running smoothly
Neat and bright appearance
Rugged and easy to operate



Hollow Shaft Motor



Operating conditions:

Output 2.2kw/3HP Model HS100L2-4
Duty S1 Speed 1400RPM
Ambient temperature -15℃≤θ≤60℃ Rated voltage 230V
Frequency 50HZ Protection class IP55/54
Phase 1 Pole 4
Insulation Class F Efficiency IE3/IE2





hollow shaft electric motor





Application

3HP 1400RPM hollow shaft motor can be direct-connected with 150bar plug pumps can operate at a maximum pressure of 150 bar and with water temperatures up to 65°C (150F). This model is a perfect choice for fitting on professional high-pressure washers.

hollow shaft motor



Data

Single-Phase 4 Poles 1400Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22





hollow shaft motor








Aluminum Single Phase hollow shaft Motor 230V 3HP 1400RPM For Electric Pressure Washer 3



Hollow Shaft Motor GUARANTEE:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
