High Efficiency Hollow Shaft Brushless Motor Low Power Loss 5.5KW/7.5HP

China High Efficiency Hollow Shaft Brushless Motor Low Power Loss 5.5KW/7.5HP supplier

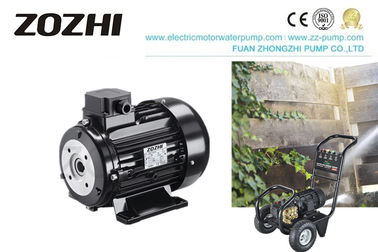

Large Image :  High Efficiency Hollow Shaft Brushless Motor Low Power Loss 5.5KW/7.5HP

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: 132S1-4

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: 5.5KW/7.5HP Application: High Pressure Pump
Voltage/Frequency: 400V/60HZ Motor Bearing:: C&U (SKF For Choice)
Efficiency:: IE2 Motor Housing:: Aluminum
Protection Class:: IP54/IP55 Insulation Class:: F Class

5.5KW/7.5HP High-efficiency Hollow Shaft Electric Motor For Car Washer

High-efficiency fully enclosed self-fan-cooled squirrel-cage AC asynchronous motor, all motor casings are made of aluminum alloy die-casting. Beautiful appearance, smooth surface and excellent characteristics of high insulation level. The motor has good thermal conductivity, low-temperature rise, low noise, small current, large starting torque, and high efficiency and energy saving. 100% all-copper coil, high-quality bearings, high-light rotor, rigorous assembly process, high-frequency hardening of shaft lift, greatly improving mechanical strength, conforming to IEC standards, seamless connection with professional equipment, and worry-free operation It is one of the ideal choices for the power of cleaning equipment.





Advantage:

1. High-quality materials, low power loss, low current, low-temperature rise, good heat dissipation, high-efficiency, and energy saving.
2, high-quality bearings, rigorous assembly process, low operating noise.
3. Tailored for professional equipment, the shaft extension is processed by high-frequency quenching, which greatly improves the mechanical strength and seamlessly connects with professional equipment to realize worry-free operation.



Main Specification Standard Optional
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire
bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 230V Three Phase
Frequency 50HZ
thermal protection Yes
Installation B3 Hollow shaft 24mm





Hollow Shaft Electric Motor Application

Hollow shaft motors are widely used in the field of cleanings, such as Hydraulic Press Machine, pressure washer and vehicle wash



Hollow shaft motors in combination with HDP-CW pumps can operate at pressures up to 200 bar and water temperatures up to 65 ° C (149 F). This version is ideal for self-service car wash yards and professional pressure washer machines that need to ensure longer life



hollow shaft electric motor



Production line



hollow shaft electric motor

High Efficiency Hollow Shaft Brushless Motor Low Power Loss 5.5KW/7.5HP





Production data



Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34




More videos please click Youtube:



High Efficiency Hollow Shaft Brushless Motor Low Power Loss 5.5KW/7.5HP



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH High Efficiency Hollow Shaft Brushless Motor Low Power Loss 5.5KW/7.5HP
water pump water pump mechnical seal

High Efficiency Hollow Shaft Brushless Motor Low Power Loss 5.5KW/7.5HP



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
