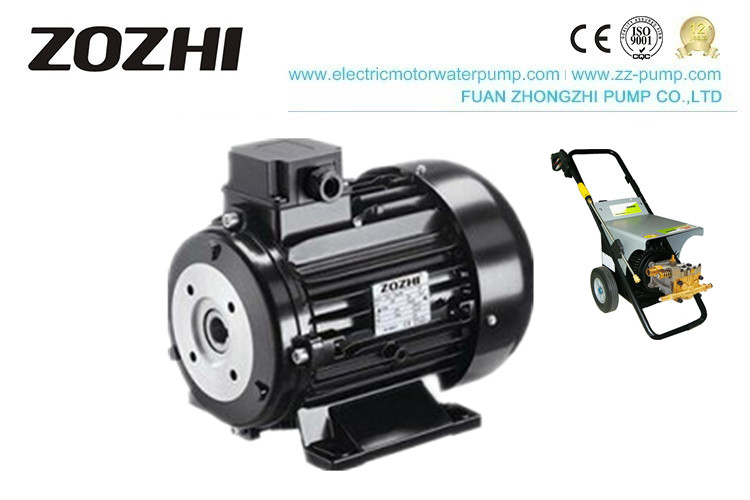

Car Washing Equipment Hollow Shaft Motor HS132M2-4 11KW Durable Induction
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | HS132M2-4 |
Minimum Order Quantity | 10PCS |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 10000pcs/month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPole | 4 | Rotation Direction | Clockwise |
---|---|---|---|
Motor Bearing | C&U (SKF For Choice) | Efficiency | IE1,IE2,IE3 |
Motor Housing | Aluminum | Insulation Class | F Class |
Product Name | Hollow Shaft Motor | ||
Highlight | hollow shaft electric motor,hollow shaft hydraulic motor |
132M2-4 15HP Hollow shaft electric Motor Hollow Shaft Gearbox For Cleaning Machine
Hollow Shaft Motor
Hollow Shaft Electric Motor Description
Hollow Shaft Motor is extensively used for industrial, agricultural, and other commercial applications. This Hollow Shaft Motor is fabricated using premium quality raw materials. This shaft motor provides smooth and stable functionality under voltage fluctuations. The robust construction of the shaft motor offers high tensile strength to perform for a more extended period. This shaft motor is easy to install and requires minimal maintenance. This finely finished motor is available in different sizes as per the requirement.
1. high-quality materials, sufficient output power, small working current, low temperature, good heat dissipation, and high efficiency.
2. high-quality bearings, rigorous assembly process, low noise.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.
Operating conditions:
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request
Hollow Shaft Electric Motor Application
MOTOR CONSTRUCTION SHAPE |
WEIGH | RATED POWER OUTPUT | SPPD | VOLTAGE | FOR PUMP SERIES | |
KG | HP | KW | RPM | |||
100132M2-4 | 53.0 | 15 | 11.0 | 1450 | 400V | XLTI |
1. 100132M2-4 Hollow shaft motor With XLTI pump
Environment: pressure ≤ 300bar
Water temperature ≤ 65 °C
Operating environment: automatic gantry-style car washes, misting systems
Production line
Production data
Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Hollow Shaft Motor
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
