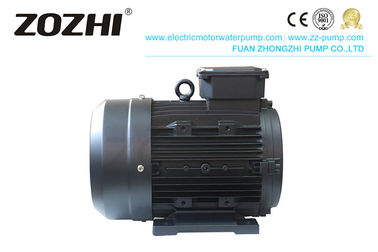

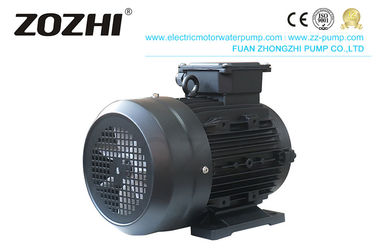

IEC 132 1450 RPM Hollow Shaft Gear Motor 4 Pole 7.5KW 50HZ For Cleaning Machine
| Place of Origin | China |
|---|---|
| Brand Name | ZOZHI |
| Certification | ISO |
| Model Number | HS132S2-4 |
| Minimum Order Quantity | 10PCS |
| Price | negotiated |
| Packaging Details | Packed in cartons,veneer case or wooden case. |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hollow Shaft Motor | Application | Cleaning Machine |
|---|---|---|---|
| Output | 7.5KW/10HP | Pole | 4 |
| Rotation Direction | Clockwise | Motor Winding. | 100% Copper Winding |
| Efficiency | IE 1 | Insulation Class | F Class |
| High Light | hollow shaft electric motor,hollow shaft hydraulic motor |
||
Product Description
Electric Motor IEC 132 1450 RPM 7.,5KW 50 HZ Hollow Shaft Diameter 24 For Cleaning Machine
Hollow Shaft Motor
The hollow shaft motor is equipped with a high-pressure pump to clean up the dirt using a high-pressure water column. It can peel off the ground and wash it away to clean the surface of the object.
Advantage:
1. small volume
2. More transmission torque
3. Higher transmission efficiency
4. Lower noise
5. More convenient to install
6. Simple maintenance
7. durable
8. Longer service life
Operating conditions:
| Ambient temperature | -15℃≤θ≤60℃ |
| Altitude | ≤1000m |
| Protection class | IP54 |
| Insulation class | class F |
| Rated voltage | 220V, other voltage on request |
| Cooling type | IC 0141 |
| Duty | Continuous(S1) |
| Rated frequency | 50HZ, other frequency on request |
Application
Production line
Production data
| Single-Phase 2 Poles 3000Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P. | P.F. | U.F. | V | A | |||
| 711-2 | 0.37 | 0.5 | 2790 | 0.95 | 62 | 12.5 | 230 | 2.7 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.98 | 61 | 16 | 230 | 4.0 |
| 90L1-2 | 1.8 | 2.5 | 2850 | 0.95 | 65 | 50 | 230 | 12.7 |
| 90L2-2 | 2.2 | 3 | 2840 | 0.99 | 72 | 60 | 400 | 13.4 |
| 100L2 | 2.2 | 3 | 2850 | 0.96 | 74 | 85 | 400 | 15.3 |
| Single-Phase 4 Poles 1500Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P. | P.F. | U.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
| 712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
| 100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
| 100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
| 100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
| 112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
| 112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
| Three-Phase 2 Poles 3000Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-2 | 0.37 | 0.5 | 2780 | 0.82 | 82 | 400 | 0.8 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.83 | 81 | 400 | 1.2 |
| 90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| 90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| 90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| 100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| 100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| 100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| 112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| 132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| 132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| 132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| 132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| 160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| 160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 |
34 |
| Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
| 712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
| 713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| 90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| 90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| 100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| 100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| 100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| 100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| 112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| 112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| 112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| 112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| 132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| 132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| 132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| 132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| 132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| 160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| 160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
| Three-Phase 6 Poles 1000Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 71-6 | 0.25 | 0.35 | 880 | 0.73 | 45 | 400 | 1.1 |
| 90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
| 100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
| 112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
| 112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
| 132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
| 132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
| 132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
| 132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
| 160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
| 160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
|
|
|
|
|
|
|
|
|
Hollow Shaft Motor
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
