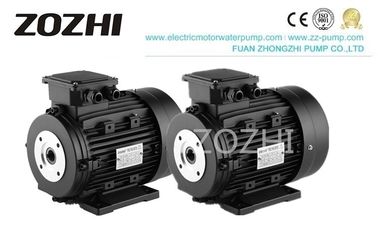

Diameter 24 Hollow Shaft Motor Electric Motor 1450 RPM 5.5KW 7.5HP For Pressure Pump
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | HS132S1-4 |
Minimum Order Quantity | 10PCS |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput | 5.5KW/7.5HP | Pole | 4 |
---|---|---|---|
Rotation Direction | Clockwise | Motor Bearing | C&U (SKF For Choice) |
Efficiency | IE1,IE2,IE3 | Motor Housing | Aluminum |
Protection Class | IP54/IP55 | Insulation Class | F Class |
Product Name | Hollow Shaft Motor | ||
High Light | hollow shaft electric motor,hollow shaft hydraulic motor |
5.5KW 7.5HP Electric Motor 132 1450 RPM 7,5KW 50 HZ Hollow Shaft Diameter 24 For Pressure Pump
Hollow Shaft Motor
Hollow Shaft Electric Motor Description
This type of electric motor is the flagship of our company in this particular market segment.
The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and, at the same time, provides a reliable and cost-efficient solution.
We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.
Mode: 132S2-4 Horsepower: 7.5
RPM:1400 Shaft Size:24mm Hollow
Voltage: 400V Hertz: 50
Motor housing: Aluminum Bearing: C&U
Shaft: C#45 Insulation: Class F
Protection: IP55 Installation: B3 Hollow shaft
Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire
Advantage:
1. Use high-quality materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2. the use of high-quality bearings, rigorous assembly process to achieve low noise operation.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.
Hollow Shaft Electric Motor Application
1132S1-4 Hollow shaft motor with plunger pump
Environment: pressure ≤ 200bar
Water temperature ≤ 65 °C
Operating environment: automatic gantry-style car washes, misting systems, or fire extinguishing systems
Production line
Production data
Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
