Electronic Centrifugal Switch Hollow Shaft Motor 112M2-4 3.7kw 5HP Single Phase

China Electronic Centrifugal Switch Hollow Shaft Motor 112M2-4 3.7kw 5HP Single Phase supplier
Electronic Centrifugal Switch Hollow Shaft Motor 112M2-4 3.7kw 5HP Single Phase supplier

Large Image :  Electronic Centrifugal Switch Hollow Shaft Motor 112M2-4 3.7kw 5HP Single Phase

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: 112M2-4

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: 3.7KW Pole: 4
Voltage/Frequency: 223V/60HZ Motor Bearing:: C&U (SKF For Choice)
Efficiency:: IE1,IE2,IE3 Motor Housing:: Aluminum
Protection Class:: IP54/IP55 Insulation Class:: F Class

112M2-4 3.7kw 5HP Single Phase Electronic Centrifugal Switch Hollow Shaft Motor For Hydraulic Press Machine



Hollow Shaft Electric Motor Description

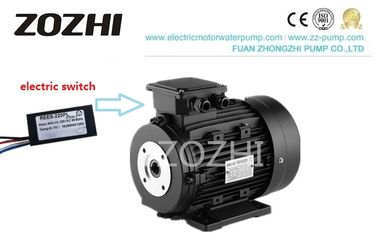

Single Phase Hollow Shaft Motor With Electronic Centrifugal Switch mounted on the motor rotor, and the circuit is connected in series in the starting circuit.



Hollow shaft electric motors are a combination of an exceptional degree of technology and innovation, quality and reliability worthy of a leading brand on the market. This hollow shaft electric motor easily mounts to piston pump with a 24mm solid shaft



hollow shaft motor adopts hollow metal tube design, novel design, and wide application. It can be used as a high-pressure pump, ventilation equipment, supercharger equipment, small hydroelectric generator, etc.



Main Specification Standard Optional
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire
bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 230V
Frequency 50HZ
thermal protection Yes
Installation B3 Hollow shaft 24mm



Advantage:

1. High-quality materials, low power loss, low current, low-temperature rise, good heat dissipation, high-efficiency, and energy saving.
2, high-quality bearings, rigorous assembly process, low operating noise.
3. Tailored for professional equipment, the shaft extension is processed by high-frequency quenching, which greatly improves the mechanical strength and seamlessly connects with professional equipment to realize worry-free operation.



Operating condition:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Hollow Shaft Electric Motor Application

Hollow shaft motors are widely used in the field of cleaning, such as Hydraulic Press Machine



hollow shaft electric motor



Production line



hollow shaft motor





Production data

Single-Phase 2 Poles 3000Rpm 50Hz

FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW HP P.F.   UF V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3

Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW HP P.F.   UF V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22





More videos please click Youtube:



Electronic Centrifugal Switch Hollow Shaft Motor 112M2-4 3.7kw 5HP Single Phase



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Electronic Centrifugal Switch Hollow Shaft Motor 112M2-4 3.7kw 5HP Single Phase
water pump water pump mechnical seal

Electronic Centrifugal Switch Hollow Shaft Motor 112M2-4 3.7kw 5HP Single Phase



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
