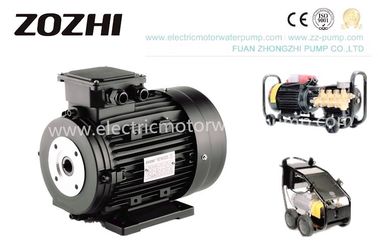

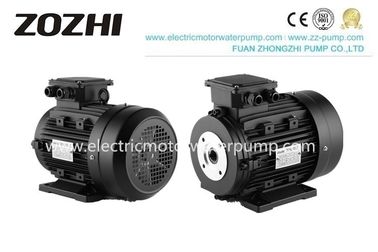

24mm Torque Hollow Shaft Motor 112M2-4 5.5KW 7.5HP With Plunger Pumps 4 Pole

  • 24mm Torque Hollow Shaft Motor 112M2-4 5.5KW 7.5HP With Plunger Pumps 4 Pole
  • 24mm Torque Hollow Shaft Motor 112M2-4 5.5KW 7.5HP With Plunger Pumps 4 Pole
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 112M2-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 5.5KW Pole 4
Voltage/Frequency 220/380V/60HZ Motor Bearing C&U (SKF For Choice)
Efficiency IE1,IE2,IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
Highlight

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

24mm Hollow Shaft Torque Motors Hollow Shaft Motor With Plunger Pumps 4 Pole 112M2-4 5.5KW 7.5HP

Hollow Shaft Motor

Hollow Shaft Electric Motor Description



Hollow shaft electric motors combine an exceptional degree of technology and innovation, quality and reliability worthy of a leading brand on the market. This hollow shaft electric motor easily mounts to the piston pump with a 24mm solid shaft.



hollow shaft motor adopts hollow metal tube design, novel design, and wide application. It can be used as a high-pressure pump, ventilation equipment, supercharger equipment, small hydroelectric generator, etc.



Main Specification Standard Optional
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire
bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 220/380V Three Phase
Frequency 60HZ
thermal protection Yes
Installation B3 Hollow shaft 24mm



Advantage:

1. High-quality materials, low power loss, low current, low-temperature rise, good heat dissipation, high efficiency, and energy-saving.
2, high-quality bearings, rigorous assembly process, low operating noise.
3. Tailored for professional equipment, the shaft extension is processed by high-frequency quenching, which significantly improves the mechanical strength and seamlessly connects with professional equipment to realize worry-free operation.



Hollow Shaft Electric Motor Application

Hollow shaft motors are widely used in cleaning car washers, high-pressure pumps, and clean machines.

hollow shaft electric motor





Production line



hollow shaft motor





Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34




24mm Torque Hollow Shaft Motor 112M2-4 5.5KW 7.5HP With Plunger Pumps 4 Pole 2

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
