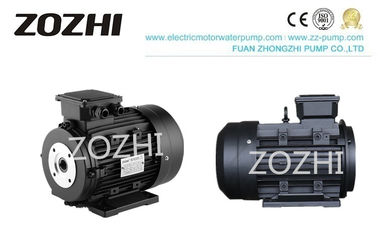

Aluminum Housing Three Phase Induction Motor 100L1-4 2.2KW 3HP For High Pressure Washer

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS100L1-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 2.2KW/3HP Pole 4
Rotation Direction Clockwise Motor Bearing C&U (SKF For Choice)
Efficiency IE1,IE2,IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

Leave a Message
Product Description

100L1-4 2.2KW 3HP Aluminum Housing Three Phase Hollow Shaft Motor For High-Pressure Washer Manufacturer

Hollow Shaft Motor

Hollow Shaft Electric Motor Description



100L1-4 hollow shaft electric motors are designed to allow direct connection with plunger pumps



Made of high-quality materials with internal joints, hollow metal tubes, full copper coils, fully enclosed, air-cooled squirrel-cage asynchronous A.C. motors.


Under the condition of equal load, the hollow shaft design with reasonable wall thickness can save a lot of material.



The hollow shaft design significantly reduces component quality and better achieves weight reduction goals.


Good performance, low noise, slight vibration, safe and reliable operation, beautiful appearance, small volume, lightweight, simple structure, and convenient maintenance.



With a wide range of applications, it is an ideal choice for cleaning equipment.





Mode: 100L1-4                                  Horsepower:3



RPM:1400 Shaft                                Size:24mm Hollow



Voltage: 400V                                    Hertz: 60



Motor housing: Aluminum                  Bearing: C&U



Shaft: C#45                                       Insulation: Class F



Protection: IP55                                Installation: B3 Hollow shaft 24mm



Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire



Advantage:

1. High-quality materials, low power loss, low current, low-temperature rise, good heat dissipation, high efficiency, and energy-saving.


2, high-quality bearings, rigorous process, low noise operation.


3. Tailored for professional equipment, the shaft extension is subjected to high-frequency quenching treatment, significantly improving mechanical strength and seamlessly connecting with the equipment to realize worry-free operation.







Main Specification Standard Optional
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire
bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 220/380V Three Phase
Frequency 60HZ
thermal protection Yes
Installation B3 Hollow shaft 24mm





Hollow Shaft Electric Motor Application



Hollow shaft asynchronous motors are designed for pressure washer pumps and are designed for various high-pressure washer applications.

hollow shaft motor

Production line

Aluminum Housing Three Phase Induction Motor 100L1-4 2.2KW 3HP For High Pressure Washer 1

Hollow Shaft Motor



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Aluminum Housing Three Phase Induction Motor 100L1-4 2.2KW 3HP For High Pressure Washer 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Aluminum Housing Three Phase Induction Motor 100L1-4 2.2KW 3HP For High Pressure Washer 8
water pump water pump mechnical seal

Aluminum Housing Three Phase Induction Motor 100L1-4 2.2KW 3HP For High Pressure Washer 12



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
