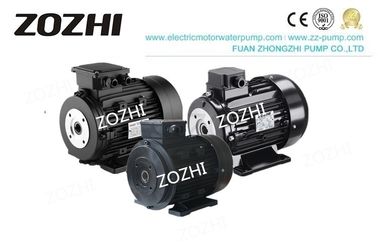

IP54 IP55 Hollow Shaft Electric Motor 112M1-4 7.5HP 5.5KW 4 Pole 1400rpm 400V/40HZ

  • IP54 IP55 Hollow Shaft Electric Motor 112M1-4 7.5HP 5.5KW 4 Pole 1400rpm 400V/40HZ
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 112M1-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 5.5KW/7.5HP Pole 4
Rotation Direction Clockwise Motor Bearing C&U (SKF For Choice)
Efficiency IE1,IE2,IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

Inner Shaft Motor Hollow Shaft Electric Motor For Car Washing Machine 112M1-4 7.5HP 5.5KW 4Pole 1400rpm 400V/40HZ

Hollow Shaft Motor

Hollow Shaft Electric Motor Description



Motors for high-pressure pumps are fitted with double flanges, two bearings, and flexible coupling. This build has reduced dimensions to combine the advantages of hollow shaft motors but retain the features of standard motors.



This hollow shaft motor with the high-pressure pump is particularly suited for fitting washing systems for the food industry or car washes. It can operate at a maximum pressure of 200 bar and with water temperatures up to 65° (185F).



Main Specification Standard Optional
Model 112M2-4
Power output 7.5kw/5.5kw
speed 1450rpm
weigh 32kg
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire
bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 220/380V Three Phase
Frequency 60HZ
thermal protection Yes
Installation B3 Hollow shaft 24mm



Advantage:

1. High-quality materials, full power, low current, low-temperature rise, good heat dissipation, high efficiency, and energy-saving.
2, high-quality bearings, rigorous assembly process, low operating noise.
3. Tailored for professional equipment, the shaft extension is processed by high-frequency quenching, which significantly improves the mechanical strength and seamlessly connects with professional equipment to realize worry-free operation.



Hollow Shaft Electric Motor Application



hollow shaft electric motor

Production line

IP54 IP55 Hollow Shaft Electric Motor 112M1-4 7.5HP 5.5KW 4 Pole 1400rpm 400V/40HZ 1



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



IP54 IP55 Hollow Shaft Electric Motor 112M1-4 7.5HP 5.5KW 4 Pole 1400rpm 400V/40HZ 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH IP54 IP55 Hollow Shaft Electric Motor 112M1-4 7.5HP 5.5KW 4 Pole 1400rpm 400V/40HZ 8
water pump water pump mechnical seal

IP54 IP55 Hollow Shaft Electric Motor 112M1-4 7.5HP 5.5KW 4 Pole 1400rpm 400V/40HZ 12

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
