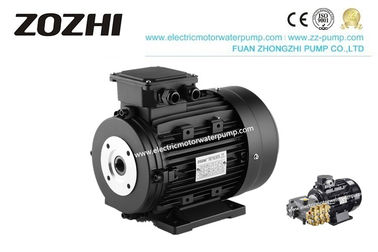

Aluminum Housing Three Phase Induction Motor , 160M1-4 Electric Motor For Car 15KW

  • Aluminum Housing Three Phase Induction Motor , 160M1-4 Electric Motor For Car 15KW
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS160M1-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 15KW/20HP Pole 4
Rotation Direction Clockwise Motor Bearing C&U (SKF For Choice)
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

High-quality Hollow shaft Aluminum Housing electric motor for car wash 160M1-4 15KW

Hollow Shaft Electric Motor Description



Hollow Shaft Motor

160M1-4 15KW three-phase aluminum housing hollow shaft motor is a high-quality motor with the latest design, made of selected high-quality materials, in line with IEC standards. In addition, the empty metal tube design greatly optimizes the mechanical design, saving design space and production cost.



The hollow shaft motor has a wide range of applications and can be used as a water pump, ventilation equipment, supercharging equipment, small hydroelectric generator, and propulsion.

The hollow shaft electric motor has the following advantages: reducing volume, weight, noise, multi-purpose, reducing cost, simple manufacturing, and convenient use.



Main Specification Standard Optional
Motor housing Aluminum
Stator&Rotor

1. Cold-rolled silicon steel sheet by high-speed punching machine.

2.100% high-quality copper wire
bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 220/380V Three Phase
Frequency 60HZ
thermal protection Yes
Installation B3 Hollow shaft 24mm











Hollow Shaft Electric Motor Application



Hollow shaft induction motors have a wide range of applications in use cleaning tools and are ideal for cleaning equipment.

hollow shaft electric motor







Production line

Aluminum Housing Three Phase Induction Motor , 160M1-4 Electric Motor For Car 15KW 1



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Aluminum Housing Three Phase Induction Motor , 160M1-4 Electric Motor For Car 15KW 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH Aluminum Housing Three Phase Induction Motor , 160M1-4 Electric Motor For Car 15KW 8
water pump water pump mechnical seal

Aluminum Housing Three Phase Induction Motor , 160M1-4 Electric Motor For Car 15KW 12

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
