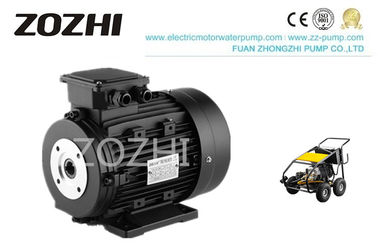

15KW 20HP Hollow Shaft Motor Aluminum Material 160M1-4 For High Pressure Machine

  • 15KW 20HP Hollow Shaft Motor Aluminum Material 160M1-4 For High Pressure Machine
  • 15KW 20HP Hollow Shaft Motor Aluminum Material 160M1-4 For High Pressure Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS160M1-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 15KW/20HP Pole 4
Rotation Direction Clockwise Motor Bearing C&U (SKF For Choice)
Efficiency IE1,IE2,IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

Hollow shaft electric motor 160M1-4 15KW 20HP For High-Pressure Machine Performance/Efficiency

Hollow Shaft Motor



Hollow Shaft Electric Motor Description



160M1-4 hollow shaft electric motor with internal joints, hollow metal tube design, high-quality materials, new technology, guaranteed output power, low-temperature rise, good thermal conductivity, slight current, good heat dissipation, low noise, high quality.

The high-quality hollow shaft induction motor direct with a high-pressure pump Connection, ideal for pressure washers and washing equipment



Mode: 160M1-4                                Horsepower: 20

RPM:1400                                        Shaft Size:24mm Hollow

Voltage: 400V                                   Hertz: 50

Motor housing: Aluminum                Bearing: C&U

Shaft: C#45                                      Insulation: Class F

Protection: IP55                               Installation: B3 Hollow shaft

Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire











Hollow Shaft Electric Motor Application



MOTOR

CONSTRUCTION

SHAPE

 WEIGH RATED POWER OUTPUT SPPD VOLTAGE FOR PUMP SERIES
KG HP KW RPM
160M1-4 100.0 20 15.0 1450 400V XXT

160M1-4 Hollow shaft motor With XXT pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: automatic gantry-style car washes, misting systems, or fire extinguishing systems



hollow shaft electric motor





Production line

15KW 20HP Hollow Shaft Motor Aluminum Material 160M1-4 For High Pressure Machine 1



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



15KW 20HP Hollow Shaft Motor Aluminum Material 160M1-4 For High Pressure Machine 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH 15KW 20HP Hollow Shaft Motor Aluminum Material 160M1-4 For High Pressure Machine 8
water pump water pump mechnical seal

15KW 20HP Hollow Shaft Motor Aluminum Material 160M1-4 For High Pressure Machine 12



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
