Quiet Operation Hollow Shaft Motor 132M2-4 11KW 15HP IP54/IP55 Protection Class

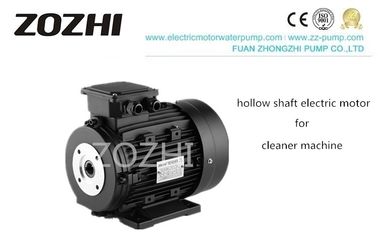

Quiet Operation Hollow Shaft Electric Motor 132M2-4 11KW 15HP For Cleaner Machine

Hollow Shaft Motor

Hollow Shaft Electric Motor Description

IEC standards, hollow metal tube design, energy-saving

fan-cooling, squirrel-cage aluminum housing A.C. asynchronous motor

1. high-quality materials, sufficient output power, small working current, low temperature, good heat dissipation, and high efficiency.
2. high-quality bearings, rigorous assembly process, low noise.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.

Mode: 132M2-4                         Horsepower: 15

RPM:1400                                 Shaft Size:24mm Hollow

Voltage: 400V                            Hertz: 50

Motor housing: Aluminum         Bearing: C&U

Shaft: C#45                               Insulation: Class F

Protection: IP55                        Installation: B3 Hollow shaft

Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire

Hollow Shaft Electric Motor Application

1. 100132M2-4 Hollow shaft motor With XLTI pump

Environment: pressure ≤ 300bar

Water temperature ≤ 65 °C

Operating environment: automatic gantry-style car washes, misting systems

Production line

Production data

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
