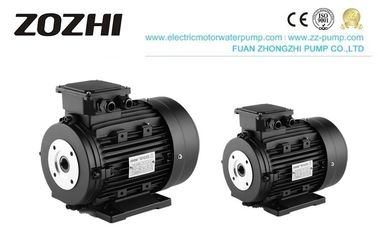

Aluminum Housing IP55 Class F Hollow Shaft Electric Motor 132S2-4 7.5KW 10HP For Car Washer

Aluminum Housing IP55 Class F Hollow Shaft Electric Motor 132S2-4 7.5KW 10HP For Car Washer

Hollow Shaft Motor

Hollow Shaft Electric Motor Description

Mode: 132S2-4

Horsepower: 10

RPM:1400

Shaft Size:24mm Hollow

Voltage: 400V

Hertz: 50

Motor housing: Aluminum

Bearing: C&U

Shaft: C#45

Insulation: Class F

Protection: IP55

Installation: B3 Hollow shaft

Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire

This is a high-quality aluminum housing motor with standard motor technology and maintenance advantages, hollow shaft design.

The hollow shaft design saves material to a large extent under identical load conditions. As a result, reduce the quality of parts and better achieve weight reduction goals.

100% copper coil, C&U bearing, shaft extension after high-frequency quenching treatment, significantly improve mechanical strength, good performance, low noise, low vibration, safe and reliable operation, beautiful appearance, simple structure, maintenance Convenience, and other advantages.

Advantage:

1. Use high-quality materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2. the use of high-quality bearings, rigorous assembly process to achieve low noise operation.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.

Hollow Shaft Electric Motor Application

100132S2-4 Hollow shaft motor With NMT pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: misting system, motor vehicle cleaning system, or pressure washer system

Production line

Production data

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
