Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine

China Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine  supplier
Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine  supplier

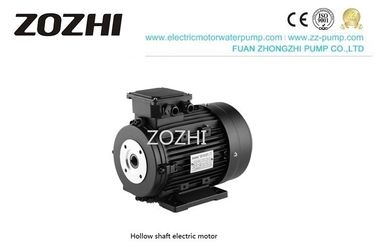

Large Image :  Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: HS112M2-4

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: 5.5KW/7.5HP Pole: 4
Rotation Direction: Clockwise Motor Bearing:: C&U (SKF For Choice)
Efficiency:: IE1,IE2,IE3 Motor Housing:: Aluminum
Protection Class:: IP54/IP55 Insulation Class:: F Class
High Light:

hollow shaft electric motor

,

hollow shaft hydraulic motor

Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine



Hollow Shaft Electric Motor Description



The hollow shaft motor is a new type of motor with an internal joint designed for high-pressure pumps. It reduces the overall size of the hollow shaft and maintains all the technical and maintenance advantages of a standard motor. Adopting new technology design, 100% copper wiring, C&U bearing, shaft extension through high-frequency quenching treatment, greatly improving mechanical strength, with low-temperature rise, fast heat dissipation, high efficiency, energy-saving. Connected to the pump for high-pressure water column cleaning.



Mode: 112M2-4                        Horsepower: 7.5

RPM:1400                                Shaft Size:24mm Hollow

Voltage: 400V                          Hertz: 50

Motor housing: Aluminum        Bearing: C&U

Shaft: C#45                              Insulation: Class F

Protection: IP55                       Installation: B3 Hollow shaft

Stator&Rotor: 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire

hollow shaft electric motor

Advantage:

1. Use high-quality materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2. the use of high-quality bearings, rigorous assembly process, to achieve low noise operation.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, greatly improve the mechanical strength, seamless connection with equipment, to achieve worry-free operation.





Hollow Shaft Electric Motor Application



MOTOR

CONSTRUCTION

SHAPE

WEIGH RATED POWER OUTPUT SPPD VOLTAGE FOR PUMP SERIES
KG HP KW RPM
112M2-4 32.0 7.5 5.5 1450 400V

NMT

NPM

NMT Car Wash

1. 112M2-4 Hollow shaft motor With NMT pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure cleaner, motor vehicle cleaning system or spray system



2. 112M2-4 Hollow shaft motor With NPM pump

Environment: pressure ≤ 250bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure washing machine



3. 112M2-4 Hollow shaft motor With NMT-CW pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: self-service car wash or longer service life professional pressure washer



hollow shaft electric motor





Production line

Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine  2



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine  3



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine  9
water pump water pump mechnical seal

Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine  13



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
