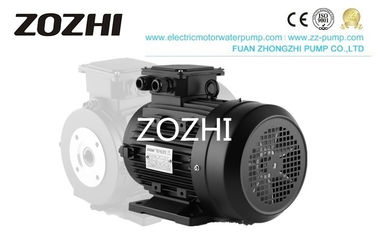

IP55 Hollow Shaft Electric Motor 100M1-4 4.4kw 6HP For High Pressure Cleaner

Hollow Shaft Electric Motor 100M1-4 4.4kw For High-Pressure Cleaner

Hollow Shaft Motor

Hollow Shaft Electric Motor Description

Mode: 100M1-4                        Horsepower:6

RPM:1400                               Shaft Size:24mm Hollow

Voltage: 400V                          Hertz: 50

Motor housing: Aluminum       Bearing: C&U

Shaft: C#45                             Insulation: Class F

Protection: IP55                      Installation: B3 Hollow shaft

Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire

Three Phase 4pole fan-cooling squirrel-cage, aluminum housing, asynchronous motor

High-quality materials, 100% copper wire, high-quality bearings, high-precision rotors

Low output power loss, low operating current, low-temperature rise, good heat dissipation, high efficiency,energy-saving

Ample starting torque, high reliability, compact structure, easy operation, low noise, low vibration, safe and reliable operation

Advantage:

1. Use high-quality materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2. the use of high-quality bearings, rigorous assembly process to achieve low noise operation.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.

Hollow Shaft Electric Motor Application

1. 100M1-4 Hollow shaft motor With NHD 150 pump

Environment: pressure ≤ 150bar

Water temperature ≤ 65 °C

Operating environment: compact professional high-pressure washer

2. 100M1-4 Hollow shaft motor With NHD200 pump & NHDP-CW pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: compact professional pressure washers and car wash systems

Production line

Production data

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
