Fully Enclosed Hollow Shaft Motor IEC Standard 100L3-4 4KW 5.5HP Fast Heat Dissipation

China Fully Enclosed Hollow Shaft Motor IEC Standard 100L3-4 4KW 5.5HP Fast Heat Dissipation supplier
Fully Enclosed Hollow Shaft Motor IEC Standard 100L3-4 4KW 5.5HP Fast Heat Dissipation supplier

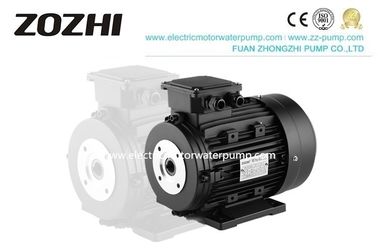

Large Image :  Fully Enclosed Hollow Shaft Motor IEC Standard 100L3-4 4KW 5.5HP Fast Heat Dissipation

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: HS100L3-4

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: 4KW/5.5HP Pole: 4
Rotation Direction: Clockwise Motor Bearing:: C&U (SKF For Choice)
Efficiency:: IE1,IE2,IE3 Motor Housing:: Aluminum
Protection Class:: IP54/IP55 Insulation Class:: F Class

Fully Enclosed IEC Standard Hollow Shaft Electric Motor 100L3-4 4KW 5.5HP For Car Wash/High-Pressure Pump



Hollow Shaft Electric Motor Description



Fully enclosed fan-cooled squirrel-cage aluminum housing AC asynchronous motor
Hollow metal tube design, IEC standards
100% copper coil, C&U bearing, with low-temperature rise, fast heat dissipation, long service life, energy-saving, large starting torque, low noise, low vibration, large starting torque, high reliability, compact structure, easy operation.



Mode: 100L3-4                           Horsepower:5.5

RPM:1400                                  Shaft Size:24mm Hollow

Voltage: 400V                             Hertz: 50

Motor housing: Aluminum          Bearing: C&U

Shaft: C#45                                Insulation: Class F

Protection: IP55                         Installation: B3 Hollow shaft

Stator&Rotor: 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire



Advantage:

1. Use high-quality materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2, the use of high-quality bearings, rigorous assembly process, to achieve low noise operation.
3, tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, greatly improve the mechanical strength, seamless connection with equipment, to achieve worry-free operation.



Main Specification Standard Optional
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire
bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 220/380V Three Phase
Frequency 60HZ
thermal protection Yes
Installation B3 Hollow shaft 24mm





Hollow Shaft Electric Motor Application



MOTOR

CONSTRUCTION

SHAPE

WEIGH RATED POWER OUTPUT SPPD VOLTAGE FOR PUMP SERIES
KG HP KW RPM
100L3-4 22.0 5.5 4.0 1450 400V NHD150 bar NHD200 bar NHDP Car Wash



1. 100L3-4 Hollow shaft motor With NHD 150 pump

Environment: pressure ≤ 150bar

Water temperature ≤ 65 °C

Operating environment: compact professional high-pressure washer

2. 100L3-4 Hollow shaft motor With NHD200 pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: compact professional pressure washers and car wash systems

3. 100L3-4 Hollow shaft motor With NHDP-CW pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: self-service car wash and professional pressure washers that need to ensure a longer service life



Hollow shaft electric motor



Production line

Fully Enclosed Hollow Shaft Motor IEC Standard 100L3-4 4KW 5.5HP Fast Heat Dissipation



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Fully Enclosed Hollow Shaft Motor IEC Standard 100L3-4 4KW 5.5HP Fast Heat Dissipation



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Fully Enclosed Hollow Shaft Motor IEC Standard 100L3-4 4KW 5.5HP Fast Heat Dissipation
water pump water pump mechnical seal

Fully Enclosed Hollow Shaft Motor IEC Standard 100L3-4 4KW 5.5HP Fast Heat Dissipation



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
