100% Output Power Hollow Shaft Motor 90L3-4 2.6KW 3.5HP 1400RPM ISO Approval

  • 100% Output Power Hollow Shaft Motor 90L3-4 2.6KW 3.5HP 1400RPM ISO Approval
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 90L2-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 2.2KW Pole 4
Rotation Direction Clockwise Motor Bearing C&U (SKF For Choice)
Efficiency IE1,IE2,IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

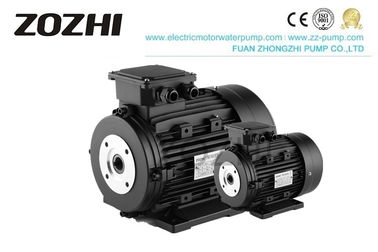

100% Output Power Hollow Shaft Electric Motor 90L3-4 2.6KW 3.5HP 1400RPM

Hollow Shaft Motor

Hollow Shaft Electric Motor Description

Mode: 90L3-4 Shaft Size:24mm Hollow

Horsepower: 3.5 RPM:1400

Voltage: 400V Hertz: 60



90L3-4 model hollow shaft motor uses 100% copper coil, high-quality bearing, high precision rotor, fully enclosed squirrel cage, hollow metal tube, new motor with internal joint, which reduces the overall size of the hollow shaft and maintains the standard motor all technical and maintenance advantages. In addition, the hollow shaft design dramatically reduces the quality of parts and better achieves the goal of weight reduction.

The hollow shaft induction motor has the characteristics of small current, low temperature, good heat dissipation, and low noise. Seamlessly connect with professional equipment for worry-free operation—ideal for cleaning equipment power systems.



Advantage:

1. high-quality materials, 100% output power, slight current, low temperature, the heat dissipation is good, energy-saving.
2. high-quality bearings, rigorous assembly process, low noise.
3. Tailored for professional cleaning equipment, the shaft extension is subjected to high-frequency quenching treatment, which significantly improves the mechanical strength and seamlessly connects with the cleaning equipment to realize worry-free operation.



Hollow Shaft Electric Motor Application

Hollow shaft motors are designed and widely used. It can be used as pumps, ventilation equipment, supercharger equipment, small hydroelectric generators, etc.

hollow shaft electric motor



Production line

100% Output Power Hollow Shaft Motor 90L3-4 2.6KW 3.5HP 1400RPM ISO Approval 1



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



100% Output Power Hollow Shaft Motor 90L3-4 2.6KW 3.5HP 1400RPM ISO Approval 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH 100% Output Power Hollow Shaft Motor 90L3-4 2.6KW 3.5HP 1400RPM ISO Approval 8
water pump water pump mechnical seal

100% Output Power Hollow Shaft Motor 90L3-4 2.6KW 3.5HP 1400RPM ISO Approval 12

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
