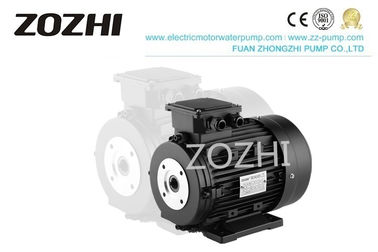

Aluminum Housing Three Phase Asynchronous Motor 90L2-4 2.2KW For Pressure Pump

  • Aluminum Housing Three Phase Asynchronous Motor 90L2-4 2.2KW For Pressure Pump
  • Aluminum Housing Three Phase Asynchronous Motor 90L2-4 2.2KW For Pressure Pump
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 90L2-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 2.2KW Pole 4
Rotation Direction Clockwise Motor Bearing C&U (SKF For Choice)
Efficiency IE1,IE2,IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

high-quality Hollow Shaft Electric Motor 90L2-4 2.2KW For Pressure Pump

Hollow Shaft Motor

Hollow Shaft Electric Motor Description

Mode: 90L2-4            Shaft Size:24mm Hollow

Horsepower:3            RPM:1400

Voltage: 400V            Hertz: 60



90L2-4 model three-phase asynchronous A.C. hollow shaft motor with aluminum housing, air-cooled squirrel cage structure, consisting of the stator, rotor, and end cover, adopts a hollow metal tube design, saving design space and production cost. In addition, 100% copper coil, high precision and rotor, high-quality bearing, shaft lift after high-frequency quenching treatment significantly improve mechanical strength and optimize the mechanical design.


It is a new high-quality motor that reduces the overall size of the hollow shaft and maintains all the technical and maintenance advantages of a standard motor.


There is ample starting torque, high reliability, compact structure, simple operation, low noise, low temperature, low current, good heat dissipation, and sufficient output power.


The rigorous assembly process is seamlessly connected with professional equipment for worry-free operation. Combined with a high-pressure pump is one of the preferred power sources for high-pressure cleaning equipment.



Advantage:

High-quality material, good heat dissipation

high efficiency, low temperature, low noise

Seamlessly connect with equipment for worry-free operation



Hollow Shaft Electric Motor Application

The hollow shaft electric A.C. motor is widely used for cleaning machines, high-pressure pumps, car wash.



hollow shaft electric motor



Production line

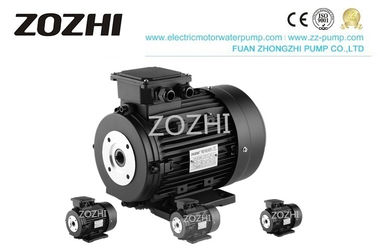

Aluminum Housing Three Phase Asynchronous Motor 90L2-4 2.2KW For Pressure Pump 1



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Aluminum Housing Three Phase Asynchronous Motor 90L2-4 2.2KW For Pressure Pump 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Aluminum Housing Three Phase Asynchronous Motor 90L2-4 2.2KW For Pressure Pump 8
water pump water pump mechnical seal

Aluminum Housing Three Phase Asynchronous Motor 90L2-4 2.2KW For Pressure Pump 12

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
