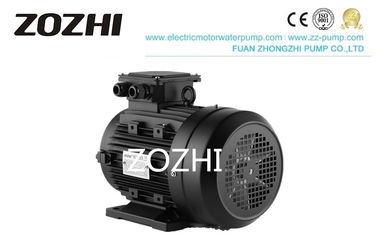

Energy Saving Hollow Shaft Electric Motor 4 Pole 711-4 0.25Kw For Car Washer

  • Energy Saving Hollow Shaft Electric Motor 4 Pole 711-4 0.25Kw For Car Washer
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS711-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.25KW Pole 4
Rotation Direction Clockwise Motor Bearing C&U (SKF For Choice)
Efficiency IE1,IE2,IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
Highlight

hollow shaft hydraulic motor

,

three phase asynchronous motor
Leave a Message
Product Description

High-quality Energy-Saving Hollow Shaft Electric Motor 711-4 0.25Kw For Car Washer

Hollow Shaft Motor

Hollow Shaft Electric Motor Description





The hollow shaft motor is an aluminum housing enclosed fan-cooled squirrel-cage A.C. asynchronous motor. It consists of a stator, rotor, and end caps. It adopts a hollow metal tube design, which greatly optimizes the mechanical design and maintains all the technologies of standard motors. Maintenance has something to save design space and production costs. 100% copper wiring, high-quality bearing, ample starting torque, high reliability, compact structure, easy operation, low pitch, low vibration, safe and reliable operation, high efficiency, and energy-saving. Ideal for cleaning equipment with increased pump combination



Advantage:



1. Using high-quality materials, the output power is sufficient, the working current is small, the temperature rise is effectively reduced, the heat dissipation is good, and the energy is high.
2. the use of high-quality bearings, rigorous assembly process to achieve low noise operation.
3. Tailored for professional cleaning equipment, the shaft extension is subjected to high-frequency quenching treatment, which significantly improves the mechanical strength and seamlessly connects with the cleaning equipment to realize worry-free operation.



Hollow Shaft Electric Motor Application

Hollow shaft induction motors have a wide range of applications in use and are connected to booster pumps. In addition, they are the power of automotive cleaning tools and are ideal for cleaning equipment.



hollow shaft electric motor



Production line

Energy Saving Hollow Shaft Electric Motor 4 Pole 711-4 0.25Kw For Car Washer 1



Production data

Single-Phase 2 Poles 3000Rpm 50Hz

FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3





Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22



Three-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400

34





Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Three-Phase 6 Poles 1000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
71-6 0.25 0.35 880 0.73 45 400 1.1
90L-6 1.1 1.5 910 0.72 72 400 3.2
100L-6 1.5 2 910 0.80 74 400 3.9
112M1-6 2.2 3 940 0.80 80 400 5
112M2-6 3 4 940 0.80 79 400 6.9
132S1-6 3 4 940 0.78 80 400 6.9
132S2-6 4 5.5 950 0.79 82 400 9
132M1-6 5.5 7.5 950 0.79 83 400 12.4
132M2-6 7.5 10 950 0.79 83 400 16.5
160M1-6 7.5 10 960 0.77 87 400 16.5
160M2-6 11 15 960 0.79 88 400 23



Energy Saving Hollow Shaft Electric Motor 4 Pole 711-4 0.25Kw For Car Washer 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Energy Saving Hollow Shaft Electric Motor 4 Pole 711-4 0.25Kw For Car Washer 8
water pump water pump mechnical seal

Energy Saving Hollow Shaft Electric Motor 4 Pole 711-4 0.25Kw For Car Washer 12

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
