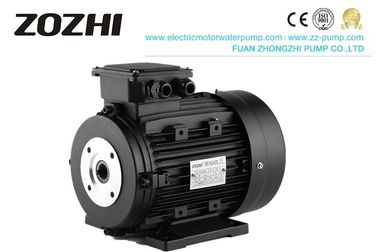

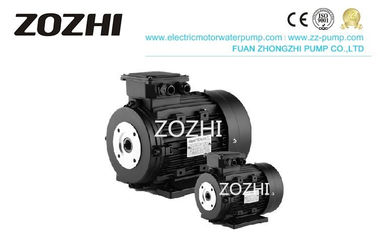

7kw Hollow Shaft Torque AC Motor 24mm Housing Aluminum HS112L-4 For Car Washer

China 7kw Hollow Shaft Torque AC Motor 24mm Housing Aluminum HS112L-4 For Car Washer supplier
7kw Hollow Shaft Torque AC Motor 24mm Housing Aluminum HS112L-4 For Car Washer supplier 7kw Hollow Shaft Torque AC Motor 24mm Housing Aluminum HS112L-4 For Car Washer supplier

Large Image :  7kw Hollow Shaft Torque AC Motor 24mm Housing Aluminum HS112L-4 For Car Washer

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: HS112L-4

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Hollow Shaft Electric Motor Application: Cleaning Machine,car Washer
Output: 7KW/9.5HP Pole: 4
Voltage: 400V/60HZ Motor Winding.: 100% Copper Winding
Efficiency:: IE 2 Motor Housing:: Aluminum
High Light:

hollow shaft electric motor

,

hollow shaft hydraulic motor

24mm HS112L-4 7kw Hollow Shaft Torque AC Motor For Car Washer



Hollow shaft motor is an aluminum housing fully enclosed fan-cooled squirrel-cage AC asynchronous motor. It consists of stator and rotor end caps. It adopts a hollow metal tube design, which greatly optimizes the mechanical design and maintains all the technologies of standard motors.



The maintenance level saves design space and production costs. 100% copper coil, high-quality bearing, large starting torque, high reliability, compact structure, easy operation, low pitch, low vibration, safe and reliable operation, high efficiency and energy saving. Ideal for cleaning equipment with increased pump combination



 Phase: three-phase

 Model:HS112L-4

 Power: 7KW/9.5HP

 No of poles: 4

 Frequency: 60Hz

 Voltage: 400V

 Brand: ZOZHI





Advantage:



1. High-quality materials to ensure sufficient output power, small working current, effectively reduce temperature rise, good heat dissipation, and high efficiency.


2. Use of high-quality bearings, rigorous assembly process, to achieve low noise operation.


3. Tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, greatly improve the mechanical strength, seamless connection with equipment, to achieve worry-free operation.



Frame



Three-phase hollow shaft motor is supplied in a robust, rugged aluminum frame with integral feet. On Request, we can supply motor in the aluminum body up to 160L frame



Ratings

all hollow shaft motor standard three-phase motors are continuous rated to comply with performance standards



Voltage and Frequency

three-phase hollow shaft motor supply volts400 ±5% 3 phase 60Hz ±3% we are also capable of manufacturing three-phase motor in different volts and frequency like220,380,460



Protection

IP-44 protection also cand be supplied with IP-54 and IP-55 on request



Insulation

Hollow shaft motors supply with class B&F insulation as a standard feature. Also, supply H on request of  the customer



Terminal Box

all three-phase motor supply with a terminal box on top position for Foot mounted. Other position boxes like left or right supply on customer request.



Shaft

Hollow shaft motor shaft made from high carbon steel pipe to provide exceptional strength&rigidity to minimize deflection. we can also supply the motor with stainless steel hollow shaft



Rotor

All hollow shaft motor rotors are of high-pressure E.C grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of vibration & noise



Bearing&Lubrication:

hollow shaft motor bearings are adequately lubricated with lithium-based high temp up to 150 deg. all the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly



Enclosure

Hollow shaft motor supply with enclosure T.E.F.C (totally Enclosed Fan Cooling)



Thermal overload protection

we can also supply motor on demand of the customer.  it can provide motor extra safety form overlord protection



Earthing terminals:

three-phase hollow shaft motor provided with a minimum of two earthing terminals. one in the terminal box and other on foot



Paints

All hollow shaft motor is painted with semi-glossy synthetic enamel paint. however sp. paint is available on request



Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request





Application



hollow shaft motor is widely used in clean machine, car washer, high-pressure pump

hollow shaft electric motor



Production line

hollow shaft electric motor



Production data

Single-Phase 2 Poles 3000Rpm 50Hz

FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW HP P.F.   UF V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3





Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW HP P.F.   UF V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22



Three-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400

34





Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Three-Phase 6 Poles 1000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
71-6 0.25 0.35 880 0.73 45 400 1.1
90L-6 1.1 1.5 910 0.72 72 400 3.2
100L-6 1.5 2 910 0.80 74 400 3.9
112M1-6 2.2 3 940 0.80 80 400 5
112M2-6 3 4 940 0.80 79 400 6.9
132S1-6 3 4 940 0.78 80 400 6.9
132S2-6 4 5.5 950 0.79 82 400 9
132M1-6 5.5 7.5 950 0.79 83 400 12.4
132M2-6 7.5 10 950 0.79 83 400 16.5
160M1-6 7.5 10 960 0.77 87 400 16.5
160M2-6 11 15 960 0.79 88 400 23



7kw Hollow Shaft Torque AC Motor 24mm Housing Aluminum HS112L-4 For Car Washer 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH 7kw Hollow Shaft Torque AC Motor 24mm Housing Aluminum HS112L-4 For Car Washer 8
water pump water pump mechnical seal

7kw Hollow Shaft Torque AC Motor 24mm Housing Aluminum HS112L-4 For Car Washer 12



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
