Three Phase 4 Pole Hollow Shaft Electric Motor 0.37KW HS 712-4 Clockwise Rotation
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | hollow shaft electric motor |
Minimum Order Quantity | 1pc |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Hollow Shaft Motor | Application | Cleaning Machine |
---|---|---|---|
Output | 0.37KW | Pole | 4 |
Rotation Direction | Clockwise | Motor Winding. | 100% Copper Winding |
Efficiency | IE 2 | Motor Housing | Aluminum |
High Light | hollow shaft hydraulic motor,three phase asynchronous motor |

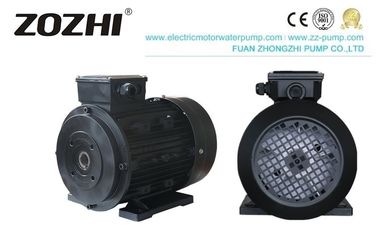

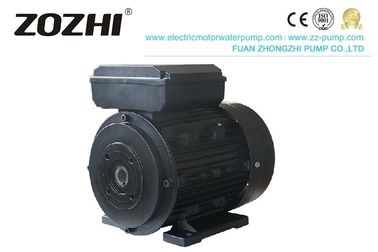

HS 712-4 0.37KW Three-Phase 4 Pole Hollow Shaft Electric Motor
Hollow Shaft Motor
The three-phase asynchronous motor is a fully enclosed self-fan-cooled squirrel-cage A.C. asynchronous motor, and the motor casings are all formed by aluminum alloy die-casting. The hollow shaft design greatly optimizes the mechanical design and maintains all the technical and maintenance advantages of the standard motor. 100% copper coil, C&U bearing, shaft extension through high-frequency quenching treatment, significantly improving mechanical strength, directly with high-pressure pump Connection, ideal for pressure washers and washing equipment.
All hollow shaft motor three-phase motors performance conforms to dimensions according to the customer or application requirement.
Phase: three-phase
Power: 0.37KW
Frame: 71
No of poles: 4
Frequency: 50Hz
Brand: ZOZHI
Application
hollow shaft motor is widely used in clean machine, car washer, high-pressure pump
Advantage:
1. Use high-quality magnetic materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2. the use of high-quality bearings, rigorous assembly process to achieve low noise operation.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, significantly improve the mechanical strength, seamless connection with gear, and worry-free operation.
Operating conditions:
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request
Production data
Single-Phase 2 Poles 3000Rpm 50Hz | ||||||||
FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
KW | H.P. | P.F. | U.F. | V | A | |||
711-2 | 0.37 | 0.5 | 2790 | 0.95 | 62 | 12.5 | 230 | 2.7 |
712-2 | 0.55 | 0.75 | 2790 | 0.98 | 61 | 16 | 230 | 4.0 |
90L1-2 | 1.8 | 2.5 | 2850 | 0.95 | 65 | 50 | 230 | 12.7 |
90L2-2 | 2.2 | 3 | 2840 | 0.99 | 72 | 60 | 400 | 13.4 |
100L2 | 2.2 | 3 | 2850 | 0.96 | 74 | 85 | 400 | 15.3 |
Single-Phase 4 Poles 1500Rpm 50Hz | ||||||||
FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
KW | H.P. | P.F. | U.F. | V | A | |||
711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
Three-Phase 2 Poles 3000Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
711-2 | 0.37 | 0.5 | 2780 | 0.82 | 82 | 400 | 0.8 |
712-2 | 0.55 | 0.75 | 2790 | 0.83 | 81 | 400 | 1.2 |
90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 |
34 |
Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
Three-Phase 6 Poles 1000Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
71-6 | 0.25 | 0.35 | 880 | 0.73 | 45 | 400 | 1.1 |
90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
Hollow Shaft Motor
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
