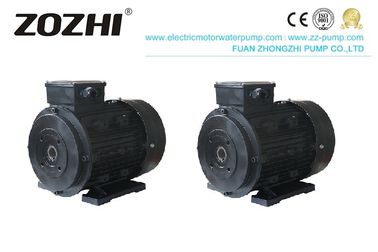

Fan Cooling Hollow Shaft Motor , 90L3-4 3.5hp Aluminum Electric Motor 4 Pole
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Hollow Shaft Motor | Pole | 4 |
---|---|---|---|
Rotation Direction | Clockwise | Motor Bearing | C&U (SKF For Choice) |
Efficiency | IE 2 | Motor Housing | Aluminum |
Protection Class | IP54/IP55 | Insulation Class | F Class |
High Light | hollow shaft electric motor,hollow shaft hydraulic motor |
90L3-4 3.5hp fan cooling aluminum electric motor with hollow shaft
Hollow Shaft Motor
Hollow shaft motor is a high-quality motor that adopts high-quality magnetic material, empty metal tube design, sufficient output power, good thermal conductivity, slight current, effective temperature rise, good heat dissipation, and low noise.
Tailored for professional equipment, the shaft extension is subjected to high-frequency quenching treatment, which significantly improves the mechanical strength, seamlessly connects with the equipment, and realizes worry-free operation.
Advantage:
1. Strong construction
2. High durability
3. Economical price
4. Low noise
5. High efficient
Operating conditions:
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request
Production line
Production data
Single-Phase 2 Poles 3000Rpm 50Hz | ||||||||
FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
KW | H.P. | P.F. | U.F. | V | A | |||
711-2 | 0.37 | 0.5 | 2790 | 0.95 | 62 | 12.5 | 230 | 2.7 |
712-2 | 0.55 | 0.75 | 2790 | 0.98 | 61 | 16 | 230 | 4.0 |
90L1-2 | 1.8 | 2.5 | 2850 | 0.95 | 65 | 50 | 230 | 12.7 |
90L2-2 | 2.2 | 3 | 2840 | 0.99 | 72 | 60 | 400 | 13.4 |
100L2 | 2.2 | 3 | 2850 | 0.96 | 74 | 85 | 400 | 15.3 |
Single-Phase 4 Poles 1500Rpm 50Hz | ||||||||
FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
KW | H.P. | P.F. | U.F. | V | A | |||
711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
Three-Phase 2 Poles 3000Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
711-2 | 0.37 | 0.5 | 2780 | 0.82 | 82 | 400 | 0.8 |
712-2 | 0.55 | 0.75 | 2790 | 0.83 | 81 | 400 | 1.2 |
90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 |
34 |
Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
Three-Phase 6 Poles 1000Rpm 50Hz | |||||||
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
KW | H.P. | P.F. | V | A | |||
71-6 | 0.25 | 0.35 | 880 | 0.73 | 45 | 400 | 1.1 |
90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
