Aluminium Housing Single Phase Electric Motor Hollow Shaft 4 Pole 711-4 0.25Kw

Aluminium Housing Single Phase Electric Motor Hollow Shaft 4 Pole 711-4 0.25Kw
Aluminium Housing Single Phase Electric Motor Hollow Shaft 4 Pole 711-4 0.25Kw

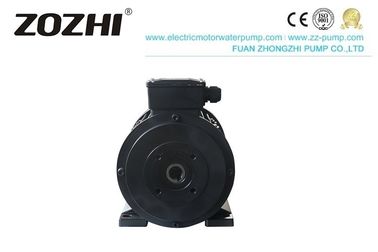

Large Image :  Aluminium Housing Single Phase Electric Motor Hollow Shaft 4 Pole 711-4 0.25Kw

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: HS711-4

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Hollow Shaft Motor Application: Cleaning Machine
Output: 0.25KW/0.25HP Pole: 4
Flange Size: 71 Ampere: 0.8
Insulation: Class B Rotation Direction: Clockwise
High Light:

hollow shaft electric motor

,

hollow shaft hydraulic motor

Single Phase Electric Motor Aluminium Housing High-Pressure Pump Motor Hollow Shaft Motor 711-4 0.25Kw


Description

Hollow shaft motors can be used in a wide range of automated machinery. Such as very common water treatment equipment, packaging machinery, balers, printing machinery, small hydroelectric generators, etc.



Application

for pressure washers pumps

for direct mounting to the pump, in just a few minutes

no need to disassemble the motor front side

special executions on request

Aluminium Housing Single Phase Electric Motor Hollow Shaft 4 Pole 711-4 0.25Kw 0

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data

Three-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400

34





Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Three-Phase 6 Poles 1000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
71-6 0.25 0.35 880 0.73 45 400 1.1
90L-6 1.1 1.5 910 0.72 72 400 3.2
100L-6 1.5 2 910 0.80 74 400 3.9
112M1-6 2.2 3 940 0.80 80 400 5
112M2-6 3 4 940 0.80 79 400 6.9
132S1-6 3 4 940 0.78 80 400 6.9
132S2-6 4 5.5 950 0.79 82 400 9
132M1-6 5.5 7.5 950 0.79 83 400 12.4
132M2-6 7.5 10 950 0.79 83 400 16.5
160M1-6 7.5 10 960 0.77 87 400 16.5
160M2-6 11 15 960 0.79 88 400 23





Aluminium Housing Single Phase Electric Motor Hollow Shaft 4 Pole 711-4 0.25Kw 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Aluminium Housing Single Phase Electric Motor Hollow Shaft 4 Pole 711-4 0.25Kw 8
water pump water pump mechnical seal
