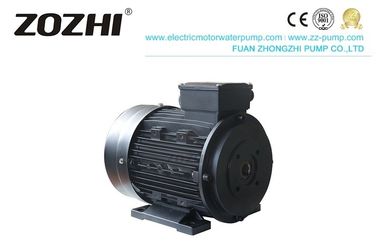

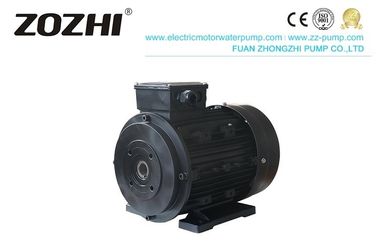

Three Phase 2 Pole 3000Rpm Electric Horizontal Hollow Shaft Motor For Cleaning Machine

Three Phase 2 Pole 3000Rpm Electric Horizontal Hollow Shaft Motor For Cleaning Machine
Three Phase 2 Pole 3000Rpm Electric Horizontal Hollow Shaft Motor For Cleaning Machine Three Phase 2 Pole 3000Rpm Electric Horizontal Hollow Shaft Motor For Cleaning Machine

Large Image :  Three Phase 2 Pole 3000Rpm Electric Horizontal Hollow Shaft Motor For Cleaning Machine

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: HS132S1-2

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Hollow Shaft Motor Application: Cleaning Machine
Output: 5.5KW/7.5HP Pole: 2
Rotation Direction: Clockwise Motor Winding.: 100% Copper Winding
Motor Bearing:: C&U (SKF For Choice) Efficiency:: IE 2
Motor Housing:: Aluminum Protection Class:: IP54/IP55
Insulation Class:: F Class
High Light:

hollow shaft electric motor

,

hollow shaft hydraulic motor

112M2-4 Three Phase Induction Motor Hollow Shaft Electric Motor For Cleaning Machine

 hollow shaft electric motor
Description

Hollow Shaft Electric Motors for high-pressure pumps with hollow shafts and single bearings are designed for direct coupling.

Motors fitted with elastic coupling

Motors for high-pressure pumps are fitted with double flanges, two bearings, and flexible coupling. This build has reduced dimensions to combine the advantages of hollow shaft motors but retaining the features of standard motors.

Encapsulated motors with elastic coupling

ZOZHI has developed the most advanced technology on the encapsulation process which we use on all of our asynchronous motors. We impregnate the entire stator in epoxy resin under vacuum to class F. This process completely eliminates any moisture due to humidity or condensation, inside the motor. This method considerably improves the electrical insulation and thermal dissipation on the motors. These motors are found in high humidity applications, namely; carwash, food processing, offshore applications and swimming pool pumps to name just a few.



Advantage

Carrying light
easy to use
Good effect
No pollution to the environment
High security
Environmental protection



Application

hollow shaft electric motor

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



Three Phase 2 Pole 3000Rpm Electric Horizontal Hollow Shaft Motor For Cleaning Machine 2

Production data

Three-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400

34





Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Three-Phase 6 Poles 1000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
71-6 0.25 0.35 880 0.73 45 400 1.1
90L-6 1.1 1.5 910 0.72 72 400 3.2
100L-6 1.5 2 910 0.80 74 400 3.9
112M1-6 2.2 3 940 0.80 80 400 5
112M2-6 3 4 940 0.80 79 400 6.9
132S1-6 3 4 940 0.78 80 400 6.9
132S2-6 4 5.5 950 0.79 82 400 9
132M1-6 5.5 7.5 950 0.79 83 400 12.4
132M2-6 7.5 10 950 0.79 83 400 16.5
160M1-6 7.5 10 960 0.77 87 400 16.5
160M2-6 11 15 960 0.79 88 400 23



Three Phase 2 Pole 3000Rpm Electric Horizontal Hollow Shaft Motor For Cleaning Machine 3



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Three Phase 2 Pole 3000Rpm Electric Horizontal Hollow Shaft Motor For Cleaning Machine 9
water pump water pump mechnical seal

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
