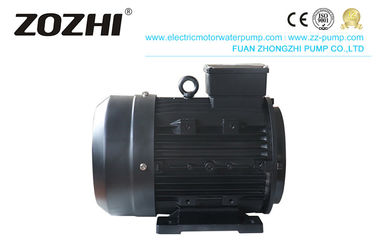

IE2 Standard Three Phase Induction Motor Aluminium Housing 8.5kw For Pressure Pump

  • IE2 Standard Three Phase Induction Motor Aluminium Housing 8.5kw For Pressure Pump
  • IE2 Standard Three Phase Induction Motor Aluminium Housing 8.5kw For Pressure Pump
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Hollow Shaft Motor
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application High Pressure Pump
Output 8.5kw Pole 4
Flange Size Hollow Shaft Ampere 13.5
Insulation Class B Rotation Direction Clockwise
Highlight

hollow shaft hydraulic motor

,

three phase asynchronous motor
Leave a Message
Product Description

Three Phase electric motor Horizontal Hollow Shaft Electric Motors For Pressure Pump



Hollow Shaft Motor DESCRIPTION:



Hollow shaft motor direct coupling between motor and high-pressure pumps can be used in a wide range of automated machinery, such as standard water treatment equipment, packaging machinery, balers, printing machinery, small hydroelectric generators, etc.


TECHNICAL DATA:





Sizing table:

THREE-PHASE 2 POLES 3000RPm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400 34
160M3-2 22 30 2920 0.87 89.2 400 41



THREE-PHASE 4 POLES 1500RPm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



THREE-PHASE 6 POLES 1000RPm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
71-6 0.25 0.35 880 0.73 45 400 1.1
90L-6 1.1 1.5 910 0.72 72 400 3.2
100L-6 1.5 2 910 0.80 74 400 3.9
112M1-6 2.2 3 940 0.80 80 400 5
112M2-6 3 4 940 8 79 400 6.9
132S1-6 3 4 940 0.78 80 400 6.9
132S2-6 4 5.5 950 0.79 82 400 9
132M1-6 5.5 7.5 950 0.79 83 400 12.4
132M2-6 7.5 10 950 0.79 83 400 16.5
160M1-6 7.5 10 960 0.77 87 400 16.5
160M2-6 11 15 960 0.79 88 400 23





APPLICATION:


1. For high-pressure pump

2. For Cleaner

3. For clean machine

4. For pressure pump



Hollow Shaft Motor CONTRAST ADVANTAGE:

1. Strong construction


2. High efficient and Durable



3. Economical price


4. Quality test before shipment



OPERATING CONDITIONS:


Ambient temperature -15℃≤θ≤60℃
Altitude ≤1000m
Protection class IP54
Insulation class class F
Rated voltage 220V, other voltage on request
Cooling type IC 0141
Duty Continuous(S1)
Rated frequency 50HZ, other frequency on request





hollow shaft motor



PRODUCE LINE PICTURE:

IE2 Standard Three Phase Induction Motor Aluminium Housing 8.5kw For Pressure Pump 1


IE2 Standard Three Phase Induction Motor Aluminium Housing 8.5kw For Pressure Pump 2

HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH PRESSURE SWITCH
water pump water pump mechnical seal


 IE2 Standard Three Phase Induction Motor Aluminium Housing 8.5kw For Pressure Pump 12
Hollow Shaft Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:

Q: What’s the MOQ? A: We accept one piece.
Q: Are you a factory or trading company? A: We are a manufacturer.
Q: Can you accept to use our logo? A: Yes, we can do OEM for you.
Q: What’s the warranty period? A: 1 year.
Q: What are the terms of payment? A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
