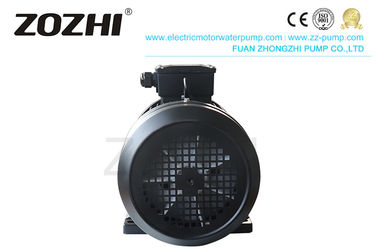

Cleaning Machnie Hollow Shaft Electric Motor HS112M1-4 4 Pole 1500 Rpm 3 Phase

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS112M1-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Cleaning Machine
Output 5.5KW/4HP Pole 4
Flange Size 112 Ampere 9.0
Insulation Class B Rotation Direction Clockwise
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

Leave a Message
Product Description

HS112M1-4 4 Pole 1500 Rpm 3 Phase Aluminium Hollow Shaft Electric Motor For Cleaning Machine

 Hollow Shaft Motor


Description

HS112M1-4

5.5 HP, 1500 RPM, 3 Phase, Hollow Shaft Electric Motor

ZOZHI Made high-quality Hollow shaft Motor



The hollow shaft motor has a baffle and flange on the front side. The first is equipped with bearings to protect the internal motor, the second is supported by the pump and contains flexible joints. The unique design reduces the overall size of the hollow shaft. It maintains all of the standard motor Technical and maintenance advantages—greatly optimized mechanical design, saving design space and production.





Application

The hollow shaft motor has the advantages of reducing volume, weight, noise, multi-purpose, reducing cost, simple manufacture, and convenient use. It has a wide range of applications and can be used as pumps, ventilation equipment, supercharged equipment, small hydroelectric generators, propellers, etc.





Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data

Single-Phase 2 Poles 3000Rpm 50Hz

FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P.PP.F . F.U.F.   U.F. V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3
Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPEREH.P.
WP.F P. U.F.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22



Three-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMH.P.RP.F
W H.P. P.F.   V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400

34





Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT H.P.PP.F
K.W. H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Three-Phase 6 Poles 1000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLH.P. A.P. F.R.E.
KW H.P. P.F.   V A
71-6 0.25 0.35 880 0.73 45 400 1.1
90L-6 1.1 1.5 910 0.72 72 400 3.2
100L-6 1.5 2 910 0.80 74 400 3.9
112M1-6 2.2 3 940 0.80 80 400 5
112M2-6 3 4 940 0.80 79 400 6.9
132S1-6 3 4 940 0.78 80 400 6.9
132S2-6 4 5.5 950 0.79 82 400 9
132M1-6 5.5 7.5 950 0.79 83 400 12.4
132M2-6 7.5 10 950 0.79 83 400 16.5
160M1-6 7.5 10 960 0.77 87 400 16.5
160M2-6 11 15 960 0.79 88 400 23





hollow shaft motor


Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts customer's customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products customers to customers' target pricesWhat's
:

1. Q: What's the M.O.Q.?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do O.E.M.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70B.L.against the B.L.C. copy or 100% L.C. at sight.
