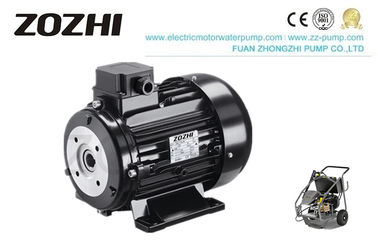

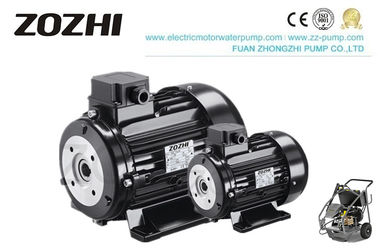

Three Phase 2 Poles 3000Rpm Hollow Shaft Electric Motor 400V 0.75HP 0.55KW HS712-2

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS712-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Pressure Pump
Output 0.55KW/0.75HP Pole 2
Flange Size 71 Ampere 1.2
Insulation Class B Rotation Direction Clockwise
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

Leave a Message
Product Description

0.75HP 0.55KW HS712-2 Three Phase 2 Poles 3000Rpm 50HZ Hollow Shaft Electric Motor 400V For Cleaning Machine

 Hollow Shaft Motor


Description

  • 0.55KW, 0.75 Hp, 3000RPM, Three Phase, 400v, 50Hz, Hollow Shaft Electric Motor
  • 71 Frame:
  • IEC 712-2
  • For Cleaning Machine
  • 2Pole
  • Die-cast aluminum housing
  • Rated to IP54

Application



The hollow shaft electric motor is widely used for a wide range of automated machinery and equipment. For example, it is ideal for pressure washers and washing equipment.



Three Phase 2 Poles 3000Rpm Hollow Shaft Electric Motor 400V 0.75HP 0.55KW HS712-2 0

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 380V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Hollow Shaft Motor

Production data

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-2 0.37 0.5 2780 0.82 82 400 0.8
712-2 0.55 0.75 2790 0.83 81 400 1.2
90L1-2 2.2 3 2820 0.86 78 400 4.9
90L2-2 3 4 2820 0.86 78 400 6.6
90L3-2 3.7 5 2820 0.80 83 400 8.6
100L1-2 3 4 2840 0.83 81 400 7
100L2-2 4 5.5 2850 0.86 82 400 8.5
100M1-2 4 5.5 2830 0.84 82 400 9.4
112M2-2 5.5 7.5 2840 0.85 83 400 11.7
132S1-2 5.5 7.5 2890 0.86 84 400 11.6
132S2-2 7.5 10 2900 0.86 84 400 15.4
132M1-2 11 15 2920 0.88 86 400 21.8
132M2-2 15 20 2920 0.88 86 400 29.3
160M1-2 15 20 2920 0.87 88 400 28
160M2-2 18.5 25 2920 0.87 89 400 34
160M3-2 22 30 2920 0.87 89.2 400 41


Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
