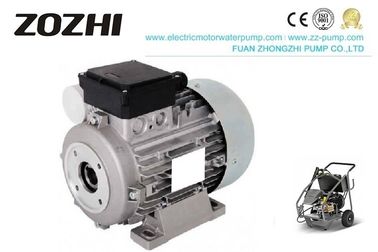

High Pressure Pump Hollow Shaft Brushless Dc Motor 2.6KW 3.5HP 4 Poles HS90L3-4

  • High Pressure Pump Hollow Shaft Brushless Dc Motor 2.6KW 3.5HP 4 Poles HS90L3-4
  • High Pressure Pump Hollow Shaft Brushless Dc Motor 2.6KW 3.5HP 4 Poles HS90L3-4
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS90L3-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application High Pressure Pump
Output 2.6KW/3.5HP Pole 4
Flange Size 90 Ampere 7.4
Insulation Class B Rotation Direction Clockwise
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

2.6KW 3.5HP HS90L3-4 Hollow-Shaft Motors Aluminum Housing Induction Motor Class B Hollow Shaft Gearbox

 Hollow Shaft Motor
Description

H.S. series hollow shaft motor is a high-quality motor with an empty metal tube design and new materials. It uses new materials to optimize the mechanical design significantly, saving design space and production cost. The hollow shaft motor has a wide field of application. It can be used as a water pump, ventilation equipment, supercharger equipment, small hydroelectric generator, propeller, etc. It has the following advantages: reduced volume, weight, noise, multi-purpose, minimized cost, simple manufacture, and convenient use.



Model: HS90L3-4

Frame Size:90

Power:3.5HP/2.6KW



Application

The hollow shaft motor has the advantages of reducing volume, noise, weight, reducing cost, multi-purpose, simple manufacture, and convenient use. It has a wide range of applications and can be used in industrial, agricultural, and other commercial applications—ideal for the clean machine.



hollow shaft electric motor

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 380V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



High Pressure Pump Hollow Shaft Brushless Dc Motor 2.6KW 3.5HP 4 Poles HS90L3-4 2

High Pressure Pump Hollow Shaft Brushless Dc Motor 2.6KW 3.5HP 4 Poles HS90L3-4 3

High Pressure Pump Hollow Shaft Brushless Dc Motor 2.6KW 3.5HP 4 Poles HS90L3-4 4

https://www.electricmotorwaterpump.com/supplier-156450-easy-spare-parts





Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making; also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
