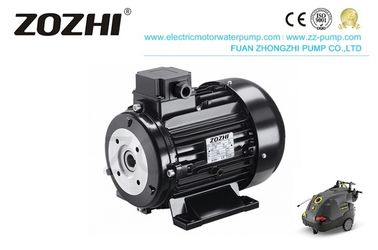

Aluminium Hollow Shaft Motor 4 Pole Three Phase HS112L-4 7KW For Cleaning Machine

  • Aluminium Hollow Shaft Motor 4 Pole Three Phase HS112L-4 7KW For Cleaning Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS112L-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Cleaning Machine
Output 7KW/9.5HP Pole 4
Flange Size 112 Ampere 13.8
Insulation Class B Rotation Direction Clockwise
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

4Pole Three Phase Aluminium Hollow Shaft Electric Motor Manufacturers China HS112L-4 7KW For Cleaning Machine

 Hollow Shaft Motor


Description

the new electric motor with an internal joint is the ideal way to couple a high-pressure pump to the motor

it has reduced the overall dimensions of the hollow shaft while keeping all the technical and maintenance advantages of the standard engine with bell housing and flexible joint

it has the shield and flange on the front side, the first, equipped with a bearing, protects the inside motor while the second supports the pump and contains the flexible joint





Model: HS112L-4

Frame Size:112

Power:7HP/9.5KW



Application

The hollow shaft motor has the advantages of reducing volume, weight, noise, multi-purpose, reducing cost, simple manufacture, and convenient use. It has a wide range of applications and can be used as pumps, ventilation equipment, supercharged equipment, small hydroelectric generators, propellers, etc.



Aluminium Hollow Shaft Motor 4 Pole Three Phase HS112L-4 7KW For Cleaning Machine 0

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



Aluminium Hollow Shaft Motor 4 Pole Three Phase HS112L-4 7KW For Cleaning Machine 1

Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34




Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
