Hollow Shaft Electric Motor , Induction Motor,1phase 3.5Hp 2.6KW HS100L3-4 For Pressure Pump

  • Hollow Shaft Electric Motor , Induction Motor,1phase 3.5Hp 2.6KW HS100L3-4 For Pressure Pump
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS100L4-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Cleaning Machine
Output 2.6KW/3.5HP Pole 4
Flange Size 100 Ampere 10
Insulation Class B Rotation Direction Clockwise
Leave a Message
Product Description

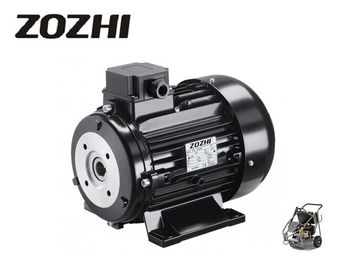

Hollow Shaft Electric Motor, Induction Motor,1phase 3.5Hp 2.6KW HS100L3-4 For Pressure Pump

 Hollow Shaft Motor


Description

Hollow shaft electric motors are typically used to supply the pumps. In a straightforward way and a few minutes, the hollow shaft coupling with its appropriate flange allows them to be directly mounted to the pump, with no need to disassemble the motor front side on pressure washers.



Model: HS100L3-4

Frame Size:100

Power:3.5HP/2.6KW



Application

The hollow shaft motor has the advantages of reducing volume, weight, noise, multi-purpose, reducing cost, simple manufacture, and convenient use. It has a wide range of applications and can be used as pumps, ventilation equipment, supercharged equipment, small hydroelectric generators, propellers, etc.



Hollow Shaft Electric Motor , Induction Motor,1phase 3.5Hp 2.6KW HS100L3-4 For Pressure Pump 0

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data

Single-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3

Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22

Hollow Shaft Motor
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
