400Volt 5.5HP/4KW 1500 Rpm 24mm HS100L3-4 Hollow Shaft Electric Motor For Cleaning Machine

  • 400Volt 5.5HP/4KW 1500 Rpm 24mm HS100L3-4 Hollow Shaft Electric Motor For Cleaning Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS100L2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Cleaning Machine
Output 5.5HP/4KW Pole 4
Flange Size 100 Ampere 9.4
Insulation Class B Rotation Direction Clockwise
Highlight

1500 Rpm Hollow Shaft Electric Motor

,

5.5HP Hollow Shaft Electric Motor

,

400Volt Hollow Shaft Electric Motor
Leave a Message
Product Description

400Volt 5.5HP/4KW 1500 Rpm 24mm HS100L3-4 Hollow Shaft Electric Motor For Cleaning Machine

Hollow Shaft Motor

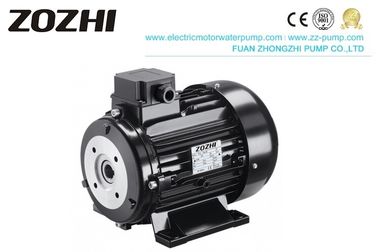

 400Volt 5.5HP/4KW 1500 Rpm 24mm HS100L3-4 Hollow Shaft Electric Motor For Cleaning Machine 0
Description

5.5 HP, Single Phase, Hollow Shaft Electric Motor

China Made, high quality, Hollow shaft Motor with bolt-on feet

1500RPM, 4 Kw,5.5Hp, Three Phase, 4000v, 50Hz

100L3-4 Frame

24mm hollow shaft



Application

H.S. electric motors are typically used to supply the pumps. In a straightforward way and a few minutes, the hollow shaft coupling with its appropriate flange allows them to be directly mounted to the pump, with no need to disassemble the motor front side.



high pressure pump clean machine

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data



Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34





Hollow Shaft Motor
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
