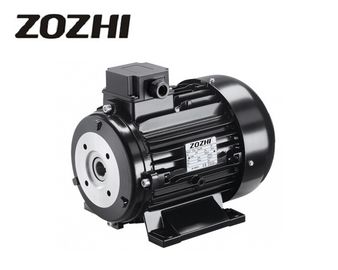

3KW 4HP 1450 RPM Three Phase Induction Motor Hollow Shaft 4 Pole ZOZHI Hs100L2-4

  • 3KW 4HP 1450 RPM Three Phase Induction Motor Hollow Shaft 4 Pole ZOZHI Hs100L2-4
  • 3KW 4HP 1450 RPM Three Phase Induction Motor Hollow Shaft 4 Pole ZOZHI Hs100L2-4
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS100L2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Pressure Pump
Output 3KW/4HP Pole 4
Flange Size 100 Ampere 6.9
Insulation Class B Rotation Direction Clockwise
Highlight

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

3KW 4HP, 1450 RPM, Three Phase, Hollow Shaft ZOZHI Electric Motor Hs100L2-4 For Pressure Pump

Hollow Shaft Motor

 hollow shaft electric motor
Description

  • 3KW, 4.0 Hp, 1450 RPM, Three Phase, 400v, 50Hz, Hollow Shaft Electric Motor
  • 24mm hollow shaft,
  • 100 Frame:
  • IEC 100L2-4  Mounting B3,
  • For high-pressure pumps
  • 4Pole
  • Die-cast aluminum housing
  • Rated to IP54

Application



It is widely used in a wide range of automated machinery and equipment. For example, it is ideal for pressure washers and washing equipment.



3KW 4HP 1450 RPM Three Phase Induction Motor Hollow Shaft 4 Pole ZOZHI Hs100L2-4 1

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 380V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34





3KW 4HP 1450 RPM Three Phase Induction Motor Hollow Shaft 4 Pole ZOZHI Hs100L2-4 3

HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH PRESSURE SWITCH
water pump water pump mechnical seal
