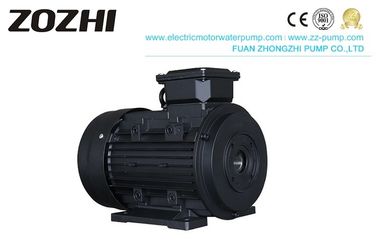

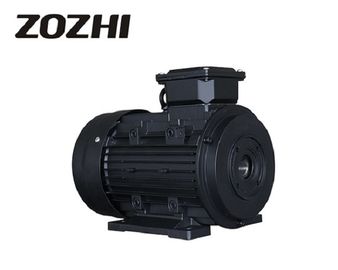

Electrical Hollow Shaft Motor 2.2KW 3.0 Hp 1450 RPM Three Phase 400v Class B Insulation

Electrical Hollow Shaft Motor 2.2KW 3.0 Hp 1450 RPM Three Phase 400v Class B Insulation
Electrical Hollow Shaft Motor 2.2KW 3.0 Hp 1450 RPM Three Phase 400v Class B Insulation Electrical Hollow Shaft Motor 2.2KW 3.0 Hp 1450 RPM Three Phase 400v Class B Insulation

Large Image :  Electrical Hollow Shaft Motor 2.2KW 3.0 Hp 1450 RPM Three Phase 400v Class B Insulation

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: HS132M1-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Hollow Shaft Motor Application: Pressure Pump
Output: 2.2KW/3HP Pole: 4
Flange Size: 100 Ampere: 5.1
Insulation: Class B Rotation Direction: Clockwise
High Light:

hollow shaft electric motor

,

hollow shaft hydraulic motor

Hollow Shaft Electrical Motor 2.2KW, 3.0 Hp, 1450 RPM, Three Phase, 400v, 50Hz


Description



  • 2.2KW, 3.0 Hp, 1450 RPM, Three Phase, 400v, 50Hz, Hollow Shaft Motor
  • High Quality,
  • 100 Frame:
  • Mounting B3,
  • HS100L1-4
  • 4Pole

Application

Hollow shaft electric is made of new materials, optimized design, and cost-saving. It is widely used in a wide range of automated machinery and equipment. It is ideal for pressure washers and washing equipment.



Electrical Hollow Shaft Motor 2.2KW 3.0 Hp 1450 RPM Three Phase 400v Class B Insulation 0

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW HP P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34




Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
