Horizontal Hollow Shaft Electric Motor 3KW 4HP 112M1-4 Clockwise Rotation Direction

China Horizontal Hollow Shaft Electric Motor 3KW 4HP 112M1-4 Clockwise Rotation Direction supplier
Horizontal Hollow Shaft Electric Motor 3KW 4HP 112M1-4 Clockwise Rotation Direction supplier Horizontal Hollow Shaft Electric Motor 3KW 4HP 112M1-4 Clockwise Rotation Direction supplier

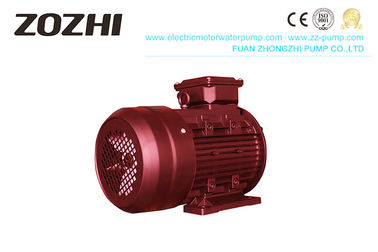

Large Image :  Horizontal Hollow Shaft Electric Motor 3KW 4HP 112M1-4 Clockwise Rotation Direction

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: HS112M1-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Hollow Shaft Motor Application: Cleaning Machine
Output: 3KW/4HP Pole: 4
Flange Size: 100 Ampere: 18.1
Insulation: Class B Rotation Direction: Clockwise

Horizontal Hollow Shaft Electric Motor 3KW 4HP 112M1-4 Clockwise Rotation Direction

 Horizontal Hollow Shaft Electric Motor 3KW 4HP 112M1-4 Clockwise Rotation Direction
Description

The hollow shaft motor has a baffle and flange on the front side, the first is equipped with bearings to protect the internal motor, the second is supported by the pump and contains flexible joints. The unique design reduces the overall size of the hollow shaft and maintains all of the standard motor Technical and maintenance advantages. Greatly optimized mechanical design, saving design space and production.



Model: HS112M1-4

Frame Size:100

Power:4HP/3KW



Application

The hollow shaft motor has the advantages of reducing volume, weight, noise, multi-purpose, reducing cost, simple manufacture and convenient use. It has a wide range of applications and can be used as pumps, ventilation equipment, supercharged equipment, small hydroelectric generators, propellers, etc.



hollow shaft electric motor

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data

Single-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW HP P.F.   UF V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3

Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW HP P.F.   UF V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22



hollow shaft motor
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
