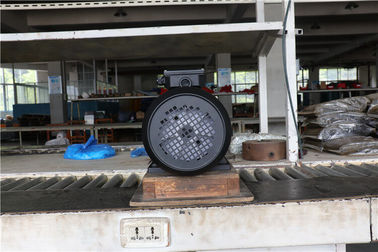

4 Pole 1 Phase Hollow Shaft Induction Motor 2.6KW 3.5HP 100L3-4 For Clean Machine

  • 4 Pole 1 Phase Hollow Shaft Induction Motor 2.6KW 3.5HP 100L3-4 For Clean Machine
  • 4 Pole 1 Phase Hollow Shaft Induction Motor 2.6KW 3.5HP 100L3-4 For Clean Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS100L3-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Cleaning Machine
Output 2.6KW/3.5HP Pole 4
Flange Size 100 Ampere 17.5
Insulation Class B Rotation Direction Clockwise
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor
Leave a Message
Product Description

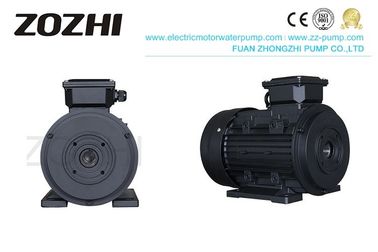

Hollow Shaft Motor

4 Pole 1 Phase Hollow Shaft Induction Motor 2.6KW 3.5HP 100L3-4 For Clean Machine 0



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH 4 Pole 1 Phase Hollow Shaft Induction Motor 2.6KW 3.5HP 100L3-4 For Clean Machine 6
water pump water pump mechnical seal

100L3-4 2.6KW 4Pole 1 Phase Hollow Shaft Induction Motor For Clean Machine


Description

A hollow shaft motor is a new type of motor with an internal connector. It is the ideal way to connect the high-pressure pump to the motor.
It reduces the overall size of the hollow shaft and maintains all the technical and maintenance advantages of a standard motor with a bell jar and flexible joint.
It has a baffle and flange on the front side; the first one is fitted with bearings to protect the internal motor, the second is supported by the pump and contains a flexible joint.



Model: HS100L3-4

Frame Size:100

Power:3.5HP/2.6KW



Application

Hollow shaft electric is made of new materials, optimized design, and cost-saving. As a result, it is widely used in a wide range of automated machinery and equipment. For example, it is ideal for pressure washers and washing equipment.



hollow shaft electric motor

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data

Single-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3

Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22




Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
