High Torque Hollow Shaft Motor 2.2KW 3HP HS100L2 For High Pressure Pump 400V

China High Torque Hollow Shaft Motor 2.2KW 3HP HS100L2 For High Pressure Pump 400V supplier
High Torque Hollow Shaft Motor 2.2KW 3HP HS100L2 For High Pressure Pump 400V supplier High Torque Hollow Shaft Motor 2.2KW 3HP HS100L2 For High Pressure Pump 400V supplier

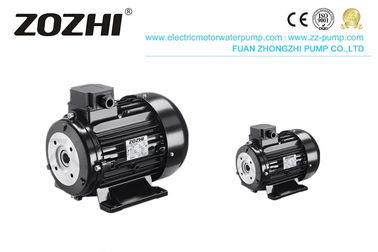

Large Image :  High Torque Hollow Shaft Motor 2.2KW 3HP HS100L2 For High Pressure Pump 400V

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: HS100L2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Hollow Shaft Motor Application: Cleaning Machine
Output: 2.2KW/3HP Pole: 2
Flange Size: 100 Ampere: 15.3
Insulation: Class B Rotation Direction: Clockwise

HS100L2 2.2KW 3HP High Torque Hollow Shaft Electric Motor For Cleaning Machine 400V

 High Torque Hollow Shaft Motor 2.2KW 3HP HS100L2 For High Pressure Pump 400V
Description

The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and at the same time provides a totally reliable and cost-efficient solution.



We have a wide range of flanges and shafts, suitable for direct coupling with the majority of the pumps on the market today



Model: HS100L2

Frame Size:100

Power:3HP/2.2KW



Application

HS electric motors are typically used to supply the pumps In a very easy way and in a few minutes, the hollow shaft coupling with its appropriate flange allows them to be directly mounted to the pump, with no need to disassemble the motor front side

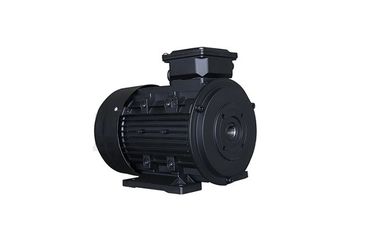

hollow shaft electric motor

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Production data

Single-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW HP P.F.   UF V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3

Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW HP P.F.   UF V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22



hollow shaft motor


Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
