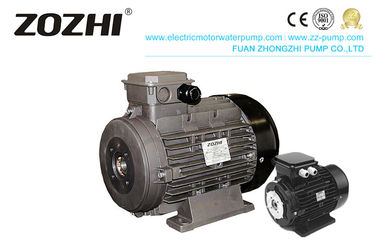

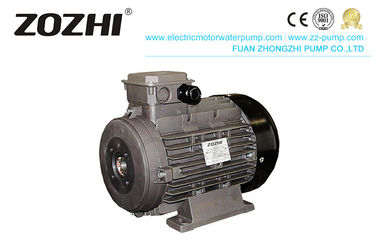

2.5HP 1.8KW Single Phase Asynchronous Motors 90L1-2 For Hollow Shaft HS Series

  • 2.5HP 1.8KW Single Phase Asynchronous Motors 90L1-2 For Hollow Shaft HS Series
  • 2.5HP 1.8KW Single Phase Asynchronous Motors 90L1-2 For Hollow Shaft HS Series
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS90L1-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Gear Motor
Output 2.5HP /1.8KW Pole 2
Flange Size 90 Ampere 12.7
Insulation Class B Rotation Direction Clockwise
High Light

hollow shaft hydraulic motor

,

three phase asynchronous motor
Leave a Message
Product Description

HS 712-2 3000rpm Hollow Shaft Electric Motor With Aluminum

Hollow Shaft Motor

2.5HP 1.8KW Single Phase Asynchronous Motors 90L1-2 For Hollow Shaft HS Series 0
Description

the new electric motor with an internal joint is the ideal way to couple a high-pressure pump to the motor


it has reduced the overall dimensions of the hollow shaft while keeping all the technical and maintenance advantages of the standard motor with bell housing and flexible joint


it has the shield and flange on the front side, the first, equipped with a bearing, protects the inside motor while the second supports the pump and contains the flexible joint



Model: HS90L1-2

Frame Size:90

Power:1.8HP/2.5KW



Application

The hollow shaft motor adopts an open metal tube design with a novel method and wide application. It can use for pumps, ventilation equipment, supercharger equipment, small hydroelectric generators, etc.

hollow shaft motor

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Hollow Shaft Motor

Production data

Single-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3

Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22


Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
