3000rpm Hollow Shaft Motor Electric Aluminum Material 2 Pole IP54 Protection Class

  • 3000rpm Hollow Shaft Motor Electric Aluminum Material 2 Pole IP54 Protection Class
  • 3000rpm Hollow Shaft Motor Electric Aluminum Material 2 Pole IP54 Protection Class
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS 712-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application Gear Motor
Output 0.75HP / 0.55KW Pole 2
Flange Size 71 Ampere 4.0
Insulation Class B Rotation Direction Clockwise
High Light

hollow shaft hydraulic motor

,

three phase asynchronous motor
Leave a Message
Product Description

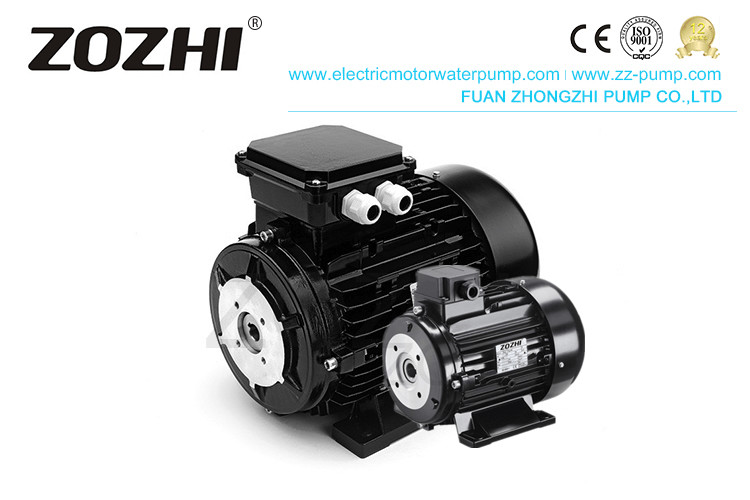

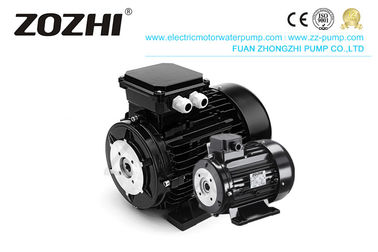

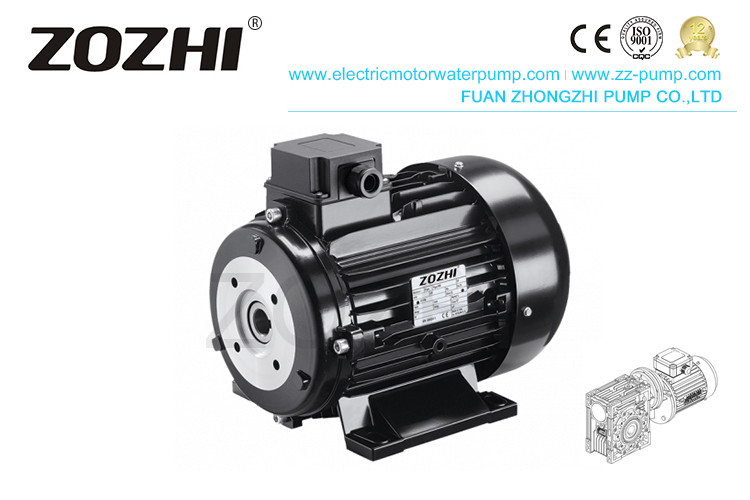

Hollow Shaft Motor

HS 712-2 3000rpm Hollow Shaft Electric Motor With Aluminum



3000rpm Hollow Shaft Motor Electric Aluminum Material 2 Pole IP54 Protection Class 0
Description

The hollow shaft electric motor is a high-quality motor with an empty metal tube design that reduces the overall size of the hollow shaft and maintains all the technical and maintenance advantages of a standard engine. Greatly optimized mechanical design, saving design space and production cost, widely used in various automated mechanical equipment, such as pressure pumps, supercharger equipment, etc.



Model: HS712-2

Frame Size:71

Power:0.75HP/0.55KW



Application

Hollow shaft electric motors can use for in a wide range of automated machineries, such as standard water treatment equipment, packaging machinery, balers, gearbox, printing machinery, etc.

hollow shaft electric motor

Operating conditions:

1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request



Production line



hollow shaft motor

Hollow Shaft Motor

Production data

Single-Phase 2 Poles 3000Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P.PP.F . F.U.F.   U.F. V A
711-2 0.37 0.5 2790 0.95 62 12.5 230 2.7
712-2 0.55 0.75 2790 0.98 61 16 230 4.0
90L1-2 1.8 2.5 2850 0.95 65 50 230 12.7
90L2-2 2.2 3 2840 0.99 72 60 400 13.4
100L2 2.2 3 2850 0.96 74 85 400 15.3

Single-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPEREH.P.
WP.F P. U.F.F.   U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22


Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



F.A.Q.:

1. Q: What's the M.O.Q.?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do O.E.M. for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% agaiB.L.t the B.L. copL.C.or 100% L.C. at sight.
